Lecture 05: ANOVA Comparisons and Contrasts

Experimental Design in Education

Jihong Zhang*, Ph.D

Educational Statistics and Research Methods (ESRM) Program*

University of Arkansas

2025-02-17

Class Outline

  1. Planned contrasts: core ideas
  2. Orthogonal contrasts: independent comparisons
  3. Applying contrasts in R
    • Computing and coding contrasts
    • Worked case: STEM vs. non-STEM groups

1 Planned Contrasts: Core Ideas

Definition: Planned Contrasts

  • Pre-defined:

    • Unlike post hoc tests, planned contrasts are determined before looking at the data, meaning the researcher has a specific hypothesis about which groups to compare.
    • Definition: Planned contrasts are hypothesis-driven comparisons made before data collection.

  • Why have planned contrasts?

    • They focus the analysis on hypotheses specified in advance; whether a multiplicity adjustment is needed depends on the number of planned tests and the error rate the researcher intends to control.
    • They can provide more powerful tests for specific comparisons of interest.
    • Example:
      • In a study comparing three teaching methods (A, B, C), a planned contrast might be to compare method A against the average of methods B and C, if the researcher hypothesizes that method A will outperform the others.

  • Weights assigned:

    • To perform a planned contrast, each group is assigned a numerical “weight” which reflects its role in the comparison, with the weights usually summing to zero.

    \[ D = weights * means \]

    • D: unscaled group differences given coding scheme

Example of Planned Contrasts

  • Real-world context: A school district randomly assigns Algebra I students to one of three after-school study supports. All students take the same end-of-unit test, and the district must choose what to offer next year.

    • A: a new retrieval-practice program with weekly low-stakes quizzes and feedback
    • B: the district’s existing teacher-led review sessions
    • C: the district’s existing guided worked-example review

  • Why compare A with the average of B and C? The practical decision is whether the new program produces a higher mean test score than the district’s typical existing option.

    • B and C form a meaningful reference family because both represent current practice.
    • Giving B and C equal weight creates one benchmark: \((\mu_B + \mu_C)/2\).
    • The contrast directly answers the adoption question; it does not test whether B differs from C.

  • Planned contrast: Assign weights \(+1\), \(-\frac{1}{2}\), and \(-\frac{1}{2}\) to A, B, and C, respectively.

    • \(D = \mu_A - \frac{\mu_B + \mu_C}{2}\)
    • \(H_0: D = 0\) versus \(H_A: D > 0\)
    • A positive, statistically significant \(D\) supports the prediction that A outperforms the average of the two existing approaches.

  • When does this comparison make sense? Researchers must justify before examining the data that B and C belong in the same reference family. If they represent substantively different benchmarks that should not be averaged, use separate planned contrasts instead.

What Does Each Contrast Tell Us?

  • Each contrast is a mean comparison (via t-test).
  • Simple contrast (pairwise) compares two individual group means.
  • Complex contrast compares a combination of group means.
  • Must be theoretically justified for meaningful interpretation.

Simple vs. Complex Comparisons

  • Simple Comparison: Two groups directly compared.
    • Example: \(H_0: \mu_2 = \mu_3\)
  • Complex Comparison: Combines means of multiple groups.
    • Example: \(H_0: \frac{(\mu_1 + \mu_2)}{2} = \mu_3\)
    • Example: \(H_0: \frac{(\mu_1 + \mu_2 + \mu_3)}{3} = \frac{(\mu_4 + \mu_5)}{2}\)

Note

We should not test all possible combinations of groups. Instead, justify your comparison plan before performing statistical analysis.

Common Contrast Families

  • We performed omnibus tests in the last lecture. An omnibus test asks whether any group means differ, but it does not identify the specific differences.

  • Today we focus more on complex contrasts.

    • Helmert contrast: In R’s default ordering, compares each group mean with the mean of the preceding groups.

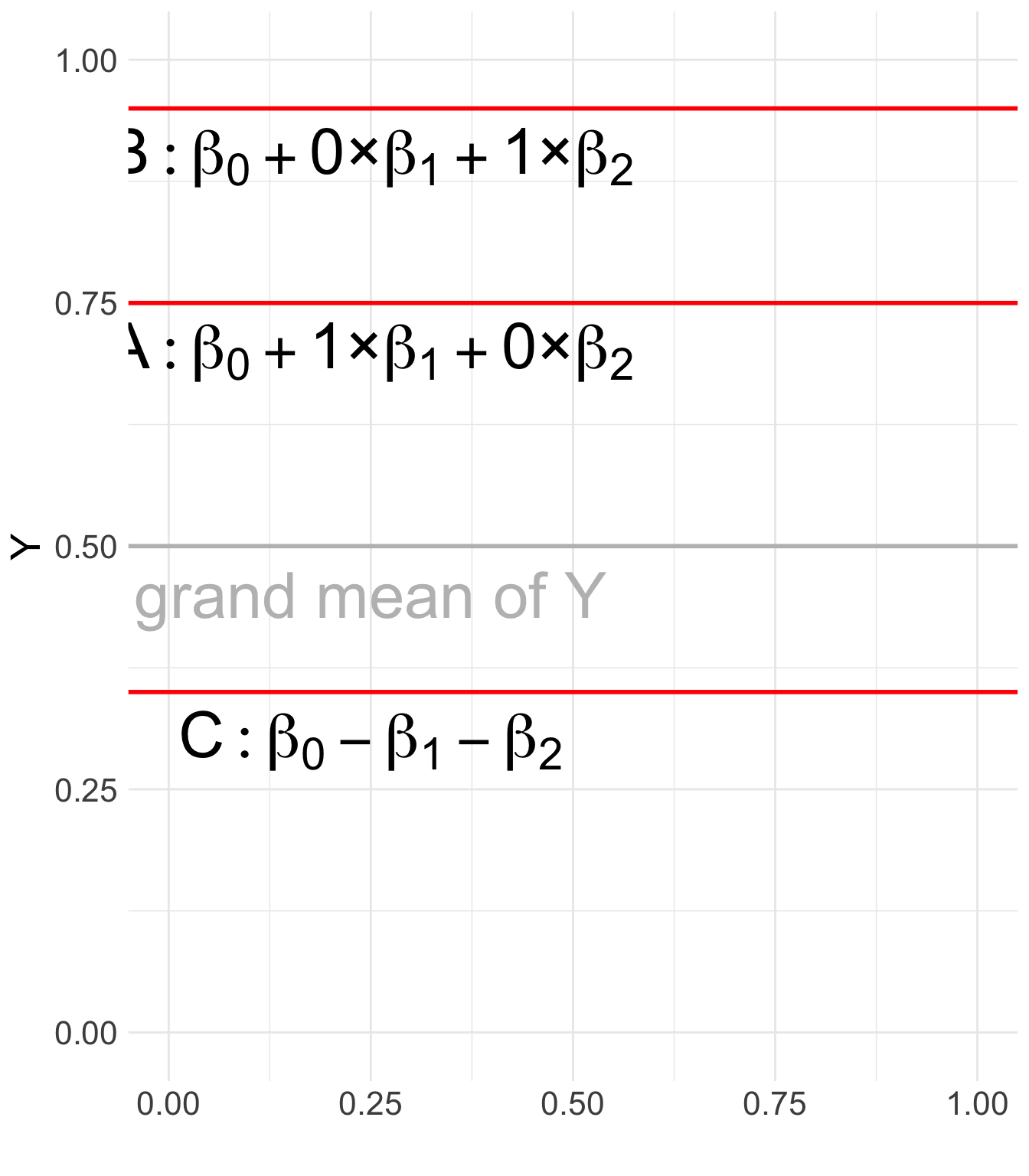

    • Sum (deviation) contrast: each group compared to the grand mean
    • Polynomial contrast: Tests for trends in ordered data.

  • By default, R uses treatment contrasts: each group compared to the reference group

    • Question: is “treatment contrast” a simple or complex contrast?
    • G1 vs. Treatment (reference)
    • G2 vs. Treatment (reference)
    • ….

2 Orthogonal Contrasts

Orthogonal vs. Non-Orthogonal Contrasts

  • Orthogonal Contrasts: Independent from each other, sum of product of weights equals zero.

  • Non-Orthogonal Contrasts: Share information across comparisons; testing many overlapping contrasts without multiplicity control can inflate the familywise Type I error rate.

    Note

    Orthogonal contrasts reduce redundancy and support clearer interpretation. Multiple-testing considerations still depend on the full planned testing family.

  • Orthogonal contrasts follow a series of group comparisons that do not overlap variances.

Orthogonality as Non-Redundant Variance

Helmert contrast example

  • With a logical control group, a good first contrast compares all treatment groups to the one control group.
  • To get each level of the IV alone, you should have one fewer contrast than your number of IV levels (3 levels = 2 contrasts)
  • Once an IV level appears by itself, it shouldn’t reappear in subsequent contrasts

VarianceDiagram A Total Variance Explained B Variance for G1 and G2 A->B E Variance for G3 A->E C Variance for G1 B->C D Variance for G2 B->D

Example of Orthogonal Contrasts

  • Contrast 1: g3 vs. (g1, g2)
  • Contrast 2: g1 vs. g2

Constructing Orthogonal Planned Contrasts

  • If the same exact combination of means is not found in more than one contrast, the contrasts can provide non-redundant comparisons.
    • With equal group sizes, check orthogonality by ensuring that the products of the paired weights sum to zero.
    • With unequal group sizes, use the weighted inner product \(\sum_i c_i d_i / n_i\).
  • For an orthogonal comparison, contrasts are independent of each other:
    • We weight the means included on each side of the contrast
    • Each contrast has weights that sum to 0
    • Groups not in the contrast get a weight of 0
  • Why does independence matter?
    • In a balanced design, orthogonal contrasts partition the treatment sum of squares into non-overlapping components.
    • Interpretation of contrasts is cleaner because contrasts aren’t related (you’ve isolated effects)
Group Contrast 1 Contrast 2 Product
G1 +1 -1 -1
G2 +1 +1 +1
G3 -2 0 0
Sum 0 0 0

Contrasts’ Independence Checking in R

Code
cat("## Constrasts and Coding \n")
contras <- matrix(
  c(1, 1, -2, -1, 1, 0), # weights for 3 groups across 2 contrasts
  ncol = 2                # 2 columns = 2 contrasts
)
contras
## Constrasts and Coding
     [,1] [,2]
[1,]    1   -1
[2,]    1    1
[3,]   -2    0

Because this example assumes equal group sizes, one can check orthogonality using the dot product between the contrast vectors. The dot product of first and second contrast is:

\((1 * -1) + (1 * 1) + (-2 * 0) = -1 + 1 + 0 = 0\)

Since the dot product of the contrasts is equal to zero, these contrasts are indeed orthogonal.

Orthogonal contrasts have the advantage that the comparison of the means of one contrast does not affect the comparison of the means of any other contrast.

Code
cat("## the dot-product of two contrasts should be zero\n")
t(contras[,1]) %*% contras[,2] # inner product of contrast 1 and contrast 2; equals 0 if orthogonal
## the dot-product of two contrasts should be zero
     [,1]
[1,]    0

Assume we have 5 groups and use sum coding to compare group means with the grand-mean reference.

The following sum-contrast matrix is valid because each column sums to zero. Check whether its columns are also orthogonal by calculating their cross-products.

new_code <- contr.sum(5)

cat("## Cross-product matrix: off-diagonal values must be zero for orthogonality\n")
crossprod(new_code)

The off-diagonal entries are 1 rather than 0, so the sum-contrast columns are not orthogonal.

3 Applying Contrasts in R

Computing Planned Contrasts

  • Formula for contrast value: \(C = c_1\mu_1 + c_2\mu_2 + \dots + c_k\mu_k\)
  • Test statistic: \(t = \frac{C}{\sqrt{MSE \sum \frac{c_i^2}{n_i}}}\)
    • \(MSE\): Mean Square Error from ANOVA
    • \(c_i\): Contrast coefficients
    • \(n_i\): Sample size per group

From Contrasts to Coding Schemes

  • The relationship between planned contrasts in ANOVA and coding in regression lies in how categorical variables are represented and interpreted in statistical models.

  • Both approaches aim to test specific hypotheses about group differences, but their implementation varies based on the framework:

    • ANOVA focuses on partitioning variance,
    • Regression interprets categorical predictors through coding schemes.

General Linear Hypothesis Testing (GLHT)

  • General Linear Hypothesis Testing: Planned contrast can be done using linear regression + contrasts

  • In R, the multcomp package provides a convenient way to perform general linear hypothesis testing

    • Allowing us to specify custom contrasts and test them against the fitted model.

  • The contrast matrix can be defined manually or using built-in contrast functions in R, such as contr.helmert, contr.sum, and contr.treatment.

  • Let’s look at the default contrasts plan: treatment contrasts == dummy coding

library(tidyverse)
library(here)
# Treatment constrast
set.seed(42)
dt <- read.csv(here(
  "teaching/2025-01-13-Experiment-Design/Lecture05",
  "week5_example.csv"
))
dt$group <- factor(dt$group, levels = paste0("g", 1:5)) # order factor levels g1 to g5
## Treatment contrast matrix
constrast <- unique(model.matrix(lm(score ~ group, data = dt))) # extract unique rows of design matrix
constrast
    (Intercept) groupg2 groupg3 groupg4 groupg5
1             1       0       0       0       0
29            1       1       0       0       0
57            1       0       1       0       0
85            1       0       0       1       0
113           1       0       0       0       1
mod_treatment <- lm(score ~ group, data = dt)   # fit regression with default treatment (dummy) coding
summary(mod_treatment)$coefficients              # intercept = g1 mean; other betas = difference from g1
              Estimate Std. Error    t value     Pr(>|t|)
(Intercept)  4.2500000  0.4226237 10.0562268 4.227502e-18
groupg2     -1.4910714  0.5976802 -2.4947646 1.381027e-02
groupg3     -0.7053571  0.5976802 -1.1801581 2.400126e-01
groupg4     -0.3932143  0.5976802 -0.6579008 5.117222e-01
groupg5     -2.2257143  0.5976802 -3.7239217 2.871765e-04
betas <- coef(mod_treatment)                     # store coefficients for later use
## Sum contrast matrix
contr.sum(levels(dt$group))                      # display sum contrast weights: last group coded as -1
   [,1] [,2] [,3] [,4]
g1    1    0    0    0
g2    0    1    0    0
g3    0    0    1    0
g4    0    0    0    1
g5   -1   -1   -1   -1
contrasts(dt$group) <- contr.sum(levels(dt$group)) # apply sum (effect) coding to group factor
mod_sum <- lm(score ~ group, data = dt)           # fit model; intercept now equals grand mean
coef_table <- summary(mod_sum)$coefficients
rownames(coef_table) <- c(                        # rename rows for readability
  "Grand Mean",
  "G1 vs. Grand Mean",
  "G2 vs. Grand Mean",
  "G3 vs. Grand Mean",
  "G4 vs. Grand Mean"
)
round(coef_table, 2)
                  Estimate Std. Error t value Pr(>|t|)
Grand Mean            3.29       0.19   17.39     0.00
G1 vs. Grand Mean     0.96       0.38    2.55     0.01
G2 vs. Grand Mean    -0.53       0.38   -1.40     0.16
G3 vs. Grand Mean     0.26       0.38    0.68     0.50
G4 vs. Grand Mean     0.57       0.38    1.51     0.13
library(multcomp)
constrast <- unique(model.matrix(mod_sum))                       # unique rows = one row per group
rownames(constrast) <- c( "E(G1)", "E(G2)", "E(G3)", "E(G4)", "E(G5)" ) # label rows by expected group mean
colnames(constrast) <- c( "B0", "B1", "B2", "B3", "B4" )        # label columns by beta coefficients
constrast
      B0 B1 B2 B3 B4
E(G1)  1  1  0  0  0
E(G2)  1  0  1  0  0
E(G3)  1  0  0  1  0
E(G4)  1  0  0  0  1
E(G5)  1 -1 -1 -1 -1
summary(glht(mod_sum, linfct = constrast)) # test each row as a linear hypothesis (recovers group means)

     Simultaneous Tests for General Linear Hypotheses

Fit: lm(formula = score ~ group, data = dt)

Linear Hypotheses:
           Estimate Std. Error t value Pr(>|t|)
E(G1) == 0   4.2500     0.4226  10.056  < 1e-05 ***
E(G2) == 0   2.7589     0.4226   6.528  < 1e-05 ***
E(G3) == 0   3.5446     0.4226   8.387  < 1e-05 ***
E(G4) == 0   3.8568     0.4226   9.126  < 1e-05 ***
E(G5) == 0   2.0243     0.4226   4.790 2.23e-05 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Adjusted p values reported -- single-step method)
## Helmert contrast matrx
contrasts(dt$group) <- contr.helmert(levels(dt$group)) # apply Helmert coding: each group vs. mean of preceding groups
mod_helm <- lm(score ~ group, data = dt)               # fit model under Helmert coding
constrast_helm <- unique(model.matrix(mod_helm))       # extract unique design matrix rows
rownames(constrast_helm) <- c( "E(G1)", "E(G2)", "E(G3)", "E(G4)", "E(G5)" )
colnames(constrast_helm) <- c( "B0", "B1", "B2", "B3", "B4" )
constrast_helm
      B0 B1 B2 B3 B4
E(G1)  1 -1 -1 -1 -1
E(G2)  1  1 -1 -1 -1
E(G3)  1  0  2 -1 -1
E(G4)  1  0  0  3 -1
E(G5)  1  0  0  0  4
group_means <- dt |>
  group_by(group) |>
  summarise(
    Mean = mean(score) # compute mean score per group
  )
res_helm <- summary(mod_helm)$coefficients  # extract coefficient table from Helmert model
rownames(res_helm) <- c(                    # rename rows to show what each Helmert beta represents
  "Grand Mean",
  "(E(G2)-E(G1))/2",                        # B1: G2 vs G1 mean, divided by 2
  "[E(G3)-(E(G1)+E(G2))/2]/3",              # B2: G3 vs average of G1-G2, divided by 3
  "[E(G4)-(E(G1)+E(G2)+E(G3))/3]/4",        # B3: G4 vs average of G1-G3, divided by 4
  "[E(G5)-(E(G1)+E(G2)+E(G3)+E(G4))/4]/5"  # B4: G5 vs average of G1-G4, divided by 5
)
res_helm
                                         Estimate Std. Error     t value
Grand Mean                             3.28692857 0.18900307 17.39087362
(E(G2)-E(G1))/2                       -0.74553571 0.29884010 -2.49476465
[E(G3)-(E(G1)+E(G2))/2]/3              0.01339286 0.17253541  0.07762382
[E(G4)-(E(G1)+E(G2)+E(G3))/3]/4        0.08473214 0.12200096  0.69452030
[E(G5)-(E(G1)+E(G2)+E(G3)+E(G4))/4]/5 -0.31566071 0.09450154 -3.34027069
                                          Pr(>|t|)
Grand Mean                            2.818829e-36
(E(G2)-E(G1))/2                       1.381027e-02
[E(G3)-(E(G1)+E(G2))/2]/3             9.382422e-01
[E(G4)-(E(G1)+E(G2)+E(G3))/3]/4       4.885495e-01
[E(G5)-(E(G1)+E(G2)+E(G3)+E(G4))/4]/5 1.082473e-03

Note

Why do the Helmert coefficients have this form?

contr.helmert(5) produces weights where each column compares group \(k+1\) against the preceding \(k\) groups. The regression system for 5 groups is:

Group Equation
\(\mu_1\) \(\beta_0 - \beta_1 - \beta_2 - \beta_3 - \beta_4\)
\(\mu_2\) \(\beta_0 + \beta_1 - \beta_2 - \beta_3 - \beta_4\)
\(\mu_3\) \(\beta_0 + 2\beta_2 - \beta_3 - \beta_4\)
\(\mu_4\) \(\beta_0 + 3\beta_3 - \beta_4\)
\(\mu_5\) \(\beta_0 + 4\beta_4\)

Solving by subtraction — the earlier \(\beta\) terms cancel in the group averages:

  • \(\mu_2 - \mu_1 = 2\beta_1 \Rightarrow \beta_1 = \frac{\mu_2 - \mu_1}{2}\)
  • \(\mu_3 - \frac{\mu_1+\mu_2}{2} = 3\beta_2 \Rightarrow \beta_2 = \frac{\mu_3 - (\mu_1+\mu_2)/2}{3}\)
  • \(\mu_4 - \frac{\mu_1+\mu_2+\mu_3}{3} = 4\beta_3 \Rightarrow \beta_3 = \frac{\mu_4 - (\mu_1+\mu_2+\mu_3)/3}{4}\)
  • \(\mu_5 - \frac{\mu_1+\mu_2+\mu_3+\mu_4}{4} = 5\beta_4 \Rightarrow \beta_4 = \frac{\mu_5 - (\mu_1+\mu_2+\mu_3+\mu_4)/4}{5}\)

General pattern: \(\beta_k = \dfrac{\mu_{k+1} - \bar{\mu}_{1:k}}{k+1}\), i.e., how much group \(k+1\) exceeds the average of the preceding \(k\) groups, divided by \(k+1\).

## Replicate the group means
glht(mod_helm, linfct = constrast_helm) # use contrast rows as linear functions to recover each group's predicted mean

     General Linear Hypotheses

Linear Hypotheses:
           Estimate
E(G1) == 0    4.250
E(G2) == 0    2.759
E(G3) == 0    3.545
E(G4) == 0    3.857
E(G5) == 0    2.024
  • contrasts(): function to set the contrast coding for a factor variable in R. It allows you to specify how the levels of the factor should be coded for regression analysis.
  • levels(dt$group): retrieves the levels of the factor variable group in the dataset dt, which are used to define the contrast coding scheme.
  • model.matrix(): function that generates the design (or model) matrix for a linear model, based on the specified formula and data. It shows how the categorical variable is represented in the regression model according to the chosen contrast coding.

Worked Case: STEM vs. Non-STEM Groups

Background

  • Data: Growth mindset scores of students from five different departments (Engineering, Education, Chemistry, Political Science, Psychology).
  • Hypothesis: STEM students have different growth mindset scores than non-STEM students.
  • Weights assigned:
    • STEM (Engineering, Chemistry): \(+\frac{1}{2}\)
    • Non-STEM (Education, Political Science, Psychology): \(-\frac{1}{3}\)
  • Compute contrast value and test using t-statistic.

Data Summary and Assumption Checks

Code
# Set seed for reproducibility
options(digits = 5)
summary_tbl <- dt |>
  group_by(group) |>
  summarise(
    N = n(),                                        # sample size per group
    Mean = mean(score),                             # group mean
    SD = sd(score),                                 # group standard deviation
    shapiro.test.p.values = shapiro.test(score)$p.value # normality test p-value (p > .05 = normal)
  ) |>
  mutate(department = c("Engineering", "Education", "Chemistry", "Political", "Psychology")) |> # add department labels
  relocate(group, department)                       # move group and department to first columns
summary_tbl
group department N Mean SD shapiro.test.p.values
g1 Engineering 28 4.2500 3.15054 0.07759
g2 Education 28 2.7589 2.19478 0.07605
g3 Chemistry 28 3.5446 2.86506 0.00623
g4 Political 28 3.8568 0.58325 0.03023
g5 Psychology 28 2.0243 1.30911 0.06147
  • Homogeneity of variance assumption: Levene’s test
Code
aov_fit <- aov(score ~ group, data = dt)  # fit one-way ANOVA
car::leveneTest(aov_fit)                  # test homogeneity of variance; p > .05 = assumption met
Levene's Test for Homogeneity of Variance (center = median)
       Df F value  Pr(>F)
group   4      13 5.8e-09 ***
      135
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Even though the assumption checks did not pass using the original categorical levels, we may still be interested in different group contrasts.

Specifying the STEM vs. Non-STEM Contrast

Helmert and sum contrasts are predefined coding systems. They count as planned comparisons only when the researcher selects them in advance because their comparisons match the substantive hypotheses.

Code
contrasts(dt$group) <- "contr.treatment" # reset explicitly because the preceding section used Helmert coding
coef(lm(score ~ group, data = dt)) # treatment-coded betas: intercept = g1 mean, others = deviation from g1
(Intercept)     groupg2     groupg3     groupg4     groupg5
    4.25000    -1.49107    -0.70536    -0.39321    -2.22571

\[ [\beta_0 + (\beta_0 + \beta_2)] / 2 - [(\beta_0 + \beta_1) + (\beta_0 + \beta_3) + (\beta_0 + \beta_4)] / 3 \\ = \beta_2 / 2 - (\beta_1 + \beta_3 + \beta_4) /3 \]

  • Expected score of reference group (Group 1, Stem): \(\beta_0\)
  • Expected score of Group 2 (Non-Stem): \(\beta_0 + \beta_1\)
  • Expected score of Group 3 (Stem): \(\beta_0 + \beta_2\)
  • Expected score of Group 4 (Non-Stem): \(\beta_0 + \beta_3\)
  • Expected score of Group 5 (Non-Stem): \(\beta_0 + \beta_4\)

Method 1: Create a new variable indicating STEM vs. Non-STEM and fit a simple linear model to test the contrast.

dt$Stem <- ifelse(dt$group %in% c("g1", "g3"), "Yes", "No") # label g1 (Engineering) and g3 (Chemistry) as STEM
dt$Stem <- factor(dt$Stem, levels = c("No", "Yes"))          # set "No" as reference; "Yes" = STEM coefficient
lm(score ~ Stem, data = dt) |> summary()                    # simple two-group regression; sample-size weighted means

Call:
lm(formula = score ~ Stem, data = dt)

Residuals:
   Min     1Q Median     3Q    Max
-3.897 -1.797  0.175  1.163  6.103

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)    2.880      0.251   11.48   <2e-16 ***
StemYes        1.017      0.397    2.56    0.011 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 2.3 on 138 degrees of freedom
Multiple R-squared:  0.0455,    Adjusted R-squared:  0.0386
F-statistic: 6.58 on 1 and 138 DF,  p-value: 0.0114

Method 2: Use the multcomp package to specify the contrast directly on the fitted ANOVA model.

aov_fit <- aov(score ~ group, data = dt)
contrast <- matrix(
  c(0, -1 / 3, 1 / 2, -1 / 3, -1 / 3), # g1=0 (ref, already in intercept), g2=-1/3, g3=+1/2, g4=-1/3, g5=-1/3
  nrow = 1                               # single-row matrix = one contrast hypothesis
)
rownames(contrast) <- "Stem vs. Non-Stem"
summary(glht(aov_fit, linfct = contrast)) # test the STEM vs. Non-STEM contrast using full ANOVA error term

     Simultaneous Tests for General Linear Hypotheses

Fit: aov(formula = score ~ group, data = dt)

Linear Hypotheses:
                       Estimate Std. Error t value Pr(>|t|)
Stem vs. Non-Stem == 0    1.017      0.386    2.64   0.0093 **
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Adjusted p values reported -- single-step method)

  • glht: general linear hypothesis test, which allows us to specify custom contrasts and test them against the fitted model.

  • contrast: A matrix specifying the contrast of interest. In this case, we are comparing the average of the STEM groups (Group 1 and Group 3) against the average of the non-STEM groups (Group 2, Group 4, and Group 5). The weights for the STEM groups are +1/2, and the weights for the non-STEM groups are -1/3.

means <- summary_tbl$Mean
mean(means[c(1,3)]) - mean(means[-c(1,3)]) # manual check: STEM mean (g1, g3) minus Non-STEM mean (g2, g4, g5)
[1] 1.0173

Why the Two Methods Give Different p-Values

  • In this balanced dataset, every original group has the same sample size. The two methods therefore estimate the same STEM minus non-STEM mean difference.

  • Their p-values can still differ because the collapsed two-group model and the full five-group ANOVA use different residual error terms and degrees of freedom. With unequal original group sizes, the methods would also target different mean contrasts unless the weights were adjusted.

Let’s break it down carefully.

🔎 What Method 1 Is Testing:

dt$Stem <- ifelse(dt$group %in% c("g1", "g3"), "Yes", "No")
lm(score ~ Stem, data = dt)

Here what we’re doing is:

  • Collapse the 5 original groups into two categories

    • STEM = g1, g3
    • Non-STEM = the rest

  • Fit a simple two-group linear model.

This tests:

\[ H_0:\ \mu_{\text{STEM}} = \mu_{\text{Non-STEM}} \]

Crucially:

  • The group means are weighted by sample size
  • The model uses a pooled variance based on the two-category split

So the STEM mean is:

\[ \frac{n_{g1}\mu_{g1} + n_{g3}\mu_{g3}}{n_{g1} + n_{g3}} \]

and similarly for Non-STEM.

👉 This is a sample-size weighted comparison.

Because all five groups have the same sample size here, this estimate is numerically identical to an equal-weight average of the group means.

🔎 What Method 2 Is Testing

contrast <- matrix(c(0, -1/3, 1/2, -1/3, -1/3), nrow = 1)
summary(glht(aov_fit, linfct = contrast))

Here:

  • Fit the full ANOVA model with all groups
  • Specify a custom contrast vector

The contrast matrix:

(0, -1/3, 1/2, -1/3, -1/3)

tests the equal-weight contrast:

\[ \frac{\mu_{g1} + \mu_{g3}}{2} - \frac{\mu_{g2} + \mu_{g4} + \mu_{g5}}{3} \]

This is:

  • A contrast of group means
  • Using fixed mathematical weights
  • NOT weighted by sample size

👉 This is an equal-weight contrast, not a sample-size weighted one.

⚠️ Why the p-values differ

The distinction has two parts:

1️⃣ Different definitions of the STEM mean

Method 1:

  • STEM mean = weighted by sample sizes

Method 2:

  • STEM mean = equal weighting across groups

If group sizes are unequal, these are not the same estimand. In the current balanced dataset, however, they are the same number.

2️⃣ Different standard errors

Method 1:

  • Variance based on 2-group model
  • Degrees of freedom reflect that collapse

Method 2:

  • Uses full ANOVA error term
  • Standard error derived from contrast formula:

\[ SE = \sqrt{\sigma^2 \cdot c^T (X^TX)^{-1} c} \]

Here the estimated difference is identical, but the standard error differs, producing different t statistics and p-values.

Built-In Contrast Matrices

  • There are multiple “canned” contrasts: Helmert, sum (effect coding), treatment

For example, Helmert: four contrasts

Summary Statistics:

Code
dt$group <- factor(dt$group, levels = c("g1", "g2", "g3", "g4", "g5")) # reset factor level order
groups <- levels(dt$group)
cH <- contr.helmert(groups)                  # generate Helmert contrast matrix (4 contrasts for 5 groups)
colnames(cH) <- paste0("Ctras", 1:4)         # rename columns for display clarity
summary_ctras_tbl <- cbind(summary_tbl, cH)  # attach contrast weights to summary statistics table
summary_ctras_tbl
   group  department  N   Mean      SD shapiro.test.p.values Ctras1 Ctras2
g1    g1 Engineering 28 4.2500 3.15054             0.0775874     -1     -1
g2    g2   Education 28 2.7589 2.19478             0.0760542      1     -1
g3    g3   Chemistry 28 3.5446 2.86506             0.0062253      0      2
g4    g4   Political 28 3.8568 0.58325             0.0302312      0      0
g5    g5  Psychology 28 2.0243 1.30911             0.0614743      0      0
   Ctras3 Ctras4
g1     -1     -1
g2     -1     -1
g3     -1     -1
g4      3     -1
g5      0      4

Checking Helmert Orthogonality

apply(cH, 2, sum)   # verify each contrast sums to 0 (required for valid contrasts)
Ctras1 Ctras2 Ctras3 Ctras4
     0      0      0      0
crossprod(cH)        # cross-product matrix; off-diagonal = 0 confirms columns are orthogonal
       Ctras1 Ctras2 Ctras3 Ctras4
Ctras1      2      0      0      0
Ctras2      0      6      0      0
Ctras3      0      0     12      0
Ctras4      0      0      0     20
summary(lm(score ~ group, dt)) # overall model summary; F-test tests whether any group differs

Call:
lm(formula = score ~ group, data = dt)

Residuals:
   Min     1Q Median     3Q    Max
-4.250 -1.500 -0.269  1.214  5.991

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)    4.250      0.423   10.06  < 2e-16 ***
groupg2       -1.491      0.598   -2.49  0.01381 *
groupg3       -0.705      0.598   -1.18  0.24001
groupg4       -0.393      0.598   -0.66  0.51172
groupg5       -2.226      0.598   -3.72  0.00029 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 2.24 on 135 degrees of freedom
Multiple R-squared:  0.117, Adjusted R-squared:  0.0907
F-statistic: 4.47 on 4 and 135 DF,  p-value: 0.00202

Interpreting Helmert, Treatment, and Sum Coding

The t-value for a contrast is calculated as:

\[ t = \frac{C}{\sqrt{MSE \sum \frac{c_i^2}{n_i}}} \]

where \(C\) is the contrast value, \(MSE\) is the mean square error from the ANOVA, \(c_i\) are the contrast coefficients, and \(n_i\) are the sample sizes for each group.

Thus, we can tell that:

  1. as the contrast value (C) increases, the t-value increases
  2. as the MSE increases, the t-value decreases
  3. as the group sample sizes increase, the standard error decreases and the absolute t-value generally increases

Helmert Contrast

  • R’s Helmert coding creates four successive comparisons:

    • C1: G1 (reference) vs. G2
    • C2: average of G1 and G2 vs. G3
    • C3: average of G1, G2, and G3 vs. G4
    • C4: average of G1, G2, G3, and G4 vs. G5

  • The positive direction is the new group minus the preceding-group average:

    • group1: \((\mu_2-\mu_1)/2\)
    • group2: \([\mu_3-(\mu_1+\mu_2)/2]/3\)
    • group3: \([\mu_4-(\mu_1+\mu_2+\mu_3)/3]/4\)
    • group4: \([\mu_5-(\mu_1+\mu_2+\mu_3+\mu_4)/4]/5\)

  • Intercept: the grand mean across all five groups.

Code
contr.helmert(levels(dt$group))       # display Helmert contrast matrix for 5 groups
contrasts(dt$group) <- "contr.helmert" # assign Helmert coding to the group factor
fit_helmert <- lm(score ~ group, dt)  # fit model; betas reflect successive group comparisons
summary(fit_helmert)$coefficients
   [,1] [,2] [,3] [,4]
g1   -1   -1   -1   -1
g2    1   -1   -1   -1
g3    0    2   -1   -1
g4    0    0    3   -1
g5    0    0    0    4
             Estimate Std. Error   t value   Pr(>|t|)
(Intercept)  3.286929   0.189003 17.390874 2.8188e-36
group1      -0.745536   0.298840 -2.494765 1.3810e-02
group2       0.013393   0.172535  0.077624 9.3824e-01
group3       0.084732   0.122001  0.694520 4.8855e-01
group4      -0.315661   0.094502 -3.340271 1.0825e-03
mean(summary_tbl$Mean)                                          # grand mean = intercept under Helmert coding
[1] 3.2869
unique(cbind(model.matrix(fit_helmert), group = dt$group))      # design matrix rows with group labels
    (Intercept) group1 group2 group3 group4 group
1             1     -1     -1     -1     -1     1
29            1      1     -1     -1     -1     2
57            1      0      2     -1     -1     3
85            1      0      0      3     -1     4
113           1      0      0      0      4     5
summary_tbl$Mean %*% contrasts(dt$group) / c(2, 6, 12, 20)     # manually compute Helmert betas from group means
         [,1]     [,2]     [,3]     [,4]
[1,] -0.74554 0.013393 0.084732 -0.31566

Treatment contrasts

  • For treatment contrasts, four dummy-coded variables are created to compare:

    • C1: G1 (ref) vs. G2
    • C2: G1 (ref) vs. G3
    • C3: G1 (ref) vs. G4
    • C4: G1 (ref) vs. G5
  • Intercept: G1’s mean
  • group2: G2 vs. G1
  • group3: G3 vs. G1
  • group4: G4 vs. G1
  • group5: G5 vs. G1
library(multcomp)
contrasts(dt$group) <- "contr.treatment"               # switch to treatment (dummy) coding; g1 is reference
fit <- lm(score ~ group, dt)
unique(cbind(model.matrix(fit), group = dt$group))     # show design matrix: g1 row = all zeros (reference)
    (Intercept) groupg2 groupg3 groupg4 groupg5 group
1             1       0       0       0       0     1
29            1       1       0       0       0     2
57            1       0       1       0       0     3
85            1       0       0       1       0     4
113           1       0       0       0       1     5
summary(fit)$coefficients # intercept = g1 mean; group2-group5 = each group's difference from g1
            Estimate Std. Error t value   Pr(>|t|)
(Intercept)  4.25000    0.42262 10.0562 4.2275e-18
groupg2     -1.49107    0.59768 -2.4948 1.3810e-02
groupg3     -0.70536    0.59768 -1.1802 2.4001e-01
groupg4     -0.39321    0.59768 -0.6579 5.1172e-01
groupg5     -2.22571    0.59768 -3.7239 2.8718e-04

Sum Contrasts and Effect Coding

  • Another type of coding is effect coding. In R, the corresponding contrast type is the so-called sum contrasts.

  • A detailed post about sum contrasts can be found here

  • With sum contrasts, the reference level is the grand mean.

    • \(\frac{g1+g2+g3+g4+g5}{5}\) (grand mean) vs. g1/g2/g3/g4: the difference between mean score of g1 with grand mean across all five groups

Note

Effect coding is a method of encoding categorical variables in regression models, similar to dummy coding, but with a different interpretation of the resulting coefficients.

It is particularly useful when researchers want to compare each level of a categorical variable to the overall mean rather than to a specific reference category.

contrasts(dt$group) <- "contr.sum"       # switch to sum (effect) coding; last group (g5) coded as -1
fit2 <- lm(score ~ group, dt)
contr.sum(levels(dt$group))              # display sum contrast matrix: last group = -1 in all columns
   [,1] [,2] [,3] [,4]
g1    1    0    0    0
g2    0    1    0    0
g3    0    0    1    0
g4    0    0    0    1
g5   -1   -1   -1   -1
summary(fit2)$coefficients # intercept = grand mean; group1-group4 = deviation of each group from grand mean
            Estimate Std. Error  t value   Pr(>|t|)
(Intercept)  3.28693    0.18900 17.39087 2.8188e-36
group1       0.96307    0.37801  2.54777 1.1962e-02
group2      -0.52800    0.37801 -1.39680 1.6476e-01
group3       0.25771    0.37801  0.68177 4.9655e-01
group4       0.56986    0.37801  1.50753 1.3401e-01
mean(dt$score) # (Intercept) grand mean
[1] 3.2869
tibble(
  Label = paste0("group", 1:4),
  Estimate = summary_tbl$Mean[1:4] - mean(dt$score) # each group's deviation from the grand mean (= sum contrast beta)
)
# A tibble: 4 × 2
  Label  Estimate
  <chr>     <dbl>
1 group1    0.963
2 group2   -0.528
3 group3    0.258
4 group4    0.570

Definition and Representation

In effect coding, categorical variables are transformed into numerical variables, typically using values of -1, 0, and 1. The key difference from dummy coding is that the reference category is represented by -1 instead of 0, and the coefficients indicate deviations from the grand mean.

For a categorical variable with k levels, effect coding requires k-1 coded variables. If we have a categorical variable X with three levels: \(A, B, C\), the effect coding scheme could be:

Category \(X_1\) \(X_2\)
A 1 0
B 0 1
C (reference) -1 -1

The last category (\(C\)) is the reference group, coded as -1 for all indicator

  • In effect coding, one level of the categorical variable (usually the last one or the one that is considered a ‘reference’ category) is coded as -1, and the others are coded as +1 or 0, suggesting their relation to the overall mean, rather than to a specific category.

Here’s how you could effect code a categorical variable with three levels (e.g., groups):

    [,1] [,2]
g1   1    0
g2   0    1
g3  -1   -1

This coding scheme shows that:

  • Group1 (g1) is compared to the overall effect by coding it as 1 in the first column and 0 in the second, suggesting it is above or below the overall mean.
  • Conversely, Group2 (g2) is also contrasted with the overall effect.
  • Group3 (g3), coded as -1 in both columns, serves as the reference category against which the other two are compared.

In your regression output, the coefficients for the first two groups will show how the mean of these groups differs from the overall mean. The intercept will represent the overall mean across all groups.

Interpretation of Coefficients in Effect Coding

When effect coding is used in a regression model:

\[ Y = \beta_0 + \beta_1 X_1 + \beta_2 X_2 + \epsilon \]

  • \(X_1\) and \(X_2\) are coded variables. They have no much meaning, but their coefficients are important
  • \(\beta_0\) represents the grand mean of \(Y\) across all categories.
  • \(\beta_1\) and \(\beta_2\) represent the deviation of categories \(A\) and \(B\) from the grand mean.
  • The reference group (\(C\)) does not have a separate coefficient; instead, its deviation can be inferred as \(-(\beta_1 + \beta_2)\).
Code
library(ggplot2)
# Create a data frame for text labels
text_data <- data.frame(
  x = rep(0.25, 3),  # Repeating the same x-coordinate
  y = c(0.3, 0.7, 0.9),  # Different y-coordinates
  label = c("C: beta[0] - beta[1] - beta[2]",
            "A: beta[0] + 1*'×'*beta[1] + 0*'×'*beta[2]",
            "B: beta[0] + 0*'×'*beta[1] + 1*'×'*beta[2]")  # Labels
)

# Create an empty ggplot with defined limits
ggplot() +
  geom_text(data = text_data, aes(x = x, y = y, label = label), parse = TRUE, size = 11) +
  # Add a vertical line at x = 0.5
  # geom_vline(xintercept = 0.5, color = "blue", linetype = "dashed", linewidth = 1) +
  # Add two horizontal lines at y = 0.3 and y = 0.7
  geom_hline(yintercept = c(0.35, 0.75, 0.95), color = "red", linetype = "solid", linewidth = 1) +
  geom_hline(yintercept = 0.5, color = "grey", linetype = "solid", linewidth = 1) +
  geom_text(aes(x = .25, y = .45, label = "grand mean of Y"), color = "grey", size = 11) +
  # Set axis limits
  xlim(0, 1) + ylim(0, 1) +
  labs(y = "Y", x = "") +
  # Theme adjustments
  theme_minimal() +
  theme(text = element_text(size = 20))

Comparison to Dummy Coding (Treatment Coding)

  • Dummy Coding: Compares each category to a specific reference category (e.g., comparing A and B to C).
Category \(X_1\) \(X_2\)
A 1 0
B 0 1
C (reference) 0 0
  • Effect Coding: Compares each category to the grand mean rather than a single reference category.

Use Cases

Effect coding is beneficial when:

  • There is no natural baseline category, and comparisons to the overall mean are more meaningful.
  • Researchers want to maintain sum-to-zero constraints for categorical variables in linear models.
  • In ANOVA-style analyses, where main effects and interaction effects are tested under an equal-weight assumption.

Implementation in R

Effect coding can be set in R using the contr.sum function:

X <- factor(c("A", "B", "C"))
contrasts(X) <- contr.sum(3)              # apply sum coding: A=1, B=0,-1; C=-1,-1 (reference)
model <- lm(Y ~ X, data = mydata)         # intercept = grand mean; betas = group deviations from grand mean
summary(model)

Practice: Political Attitude and Coding Schemes

library(ESRM64103)
head(ESRM64103::exp_political_attitude) # preview the political attitude dataset (party, scores columns)
       party scores
1   Democrat      4
2   Democrat      3
3   Democrat      5
4   Democrat      4
5   Democrat      4
6 Republican      6

  1. Under treatment coding, which level is the reference and how do you interpret the coefficients?

  2. Under effect coding, what does the intercept represent and how do you interpret each group coefficient relative to the grand mean?

library(ESRM64103)
dat <- exp_political_attitude
dat$party <- factor(dat$party, levels = c("Democrat", "Republican", "Independent"))

# 1) Fit with treatment (dummy) coding
contrasts(dat$party) <- __________
fit_tr <- lm(__________)

# 2) Fit with effect (sum) coding
contrasts(dat$party) <- __________
fit_eff <- lm(__________)

# Compare ANOVA tables and coefficients
anova_tr <- anova(fit_tr)
coef_tr  <- summary(fit_tr)$coef
anova_eff <- anova(fit_eff)
coef_eff  <- summary(fit_eff)$coef

list(
  Treatment_ANOVA = anova_tr,
  Treatment_Coef  = round(coef_tr, 3),
  Effect_ANOVA    = anova_eff,
  Effect_Coef     = round(coef_eff, 3)
)
library(ESRM64103)
dat <- exp_political_attitude
dat$party <- factor(dat$party, levels = c("Democrat", "Republican", "Independent"))
# 1) Fit with treatment (dummy) coding
contrasts(dat$party) <- contr.treatment(3)
fit_tr <- lm(scores ~ party, data = dat)

# 2) Fit with effect (sum) coding
contrasts(dat$party) <- contr.sum(3)
fit_eff <- lm(scores ~ party, data = dat)

# Compare ANOVA tables and coefficients
anova_tr <- anova(fit_tr)
coef_tr  <- summary(fit_tr)$coef
anova_eff <- anova(fit_eff)
coef_eff  <- summary(fit_eff)$coef

list(
  Treatment_ANOVA = anova_tr,
  Treatment_Coef  = round(coef_tr, 3),
  Effect_ANOVA    = anova_eff,
  Effect_Coef     = round(coef_eff, 3)
)

Summary

  • Planned contrasts allow hypothesis-driven mean comparisons.
  • Orthogonal contrasts separate non-redundant components of between-group variation.
  • Contrast coding translates the research question into an estimable model comparison.
  • The STEM versus non-STEM example shows how the same substantive comparison can be implemented with a recoded predictor or a custom contrast.
