Lecture 08: Power Analysis

Experimental Design in Education

Jihong Zhang*, Ph.D

Educational Statistics and Research Methods (ESRM) Program*

University of Arkansas

2025-03-07

1 Introduction

Learning Objectives

By the end of this lecture, you will be able to:

1. Define statistical power and explain its importance in experimental design
2. Understand the relationship between Type I and Type II errors
3. Identify the key components of power analysis
4. Calculate required sample sizes for different experimental designs
5. Apply power analysis to common research scenarios

Why This Matters

Real-World Impact in Education Research

• Underpowered studies waste limited education funding and may miss important interventions
• Overpowered studies consume resources that could benefit more students
• Power analysis is required for grant proposals (IES, NSF, NIH)
• Helps determine if research questions are feasible with available schools/classrooms
• Ethical obligation: Don’t ask teachers/students to participate in futile studies

2 What is Power Analysis?

Definition: Statistical Power

In Plain English

Imagine you’re testing whether a new teaching method works better than the old one. Power is the chance that your study will be able to detect the improvement, if the improvement is really there.

Think of it like a metal detector:

• A high-power detector can find small coins buried deep in the sand
• A low-power detector might miss those same coins, even though they’re there

Formal Definition: Statistical power is the probability that a study will correctly reject a false null hypothesis.

\[\text{Power} = 1 - \beta\]

where \(\beta\) is the probability of a Type II error (false negative)

In Plain English

In other words: Power tells us how good our study is at discovering real effects. Higher power means we’re less likely to miss something important.

The Four Possible Outcomes

flowchart TD
    A[Reality: Null Hypothesis is TRUE] --> B{Decision}
    B -->|Reject H0| C[Type I Error<br/>False Positive<br/>α]
    B -->|Fail to Reject H0| D[Correct Decision<br/>1 - α]

    E[Reality: Alternative Hypothesis is TRUE] --> F{Decision}
    F -->|Reject H0| G[Correct Decision<br/>Power = 1 - β]
    F -->|Fail to Reject H0| H[Type II Error<br/>False Negative<br/>β]

    style C fill:#ff6b6b
    style H fill:#ff6b6b
    style D fill:#51cf66
    style G fill:#51cf66

flowchart TD
    A[Reality: Null Hypothesis is TRUE] --> B{Decision}
    B -->|Reject H0| C[Type I Error<br/>False Positive<br/>α]
    B -->|Fail to Reject H0| D[Correct Decision<br/>1 - α]

    E[Reality: Alternative Hypothesis is TRUE] --> F{Decision}
    F -->|Reject H0| G[Correct Decision<br/>Power = 1 - β]
    F -->|Fail to Reject H0| H[Type II Error<br/>False Negative<br/>β]

    style C fill:#ff6b6b
    style H fill:#ff6b6b
    style D fill:#51cf66
    style G fill:#51cf66

Understanding Errors

Type I Error (α)

• False Positive
• Rejecting true null hypothesis
• Usually set at α = 0.05
• “Finding an effect that isn’t there”

Type II Error (β)

• False Negative
• Failing to reject false null hypothesis
• Usually set at β = 0.20
• “Missing an effect that is there”

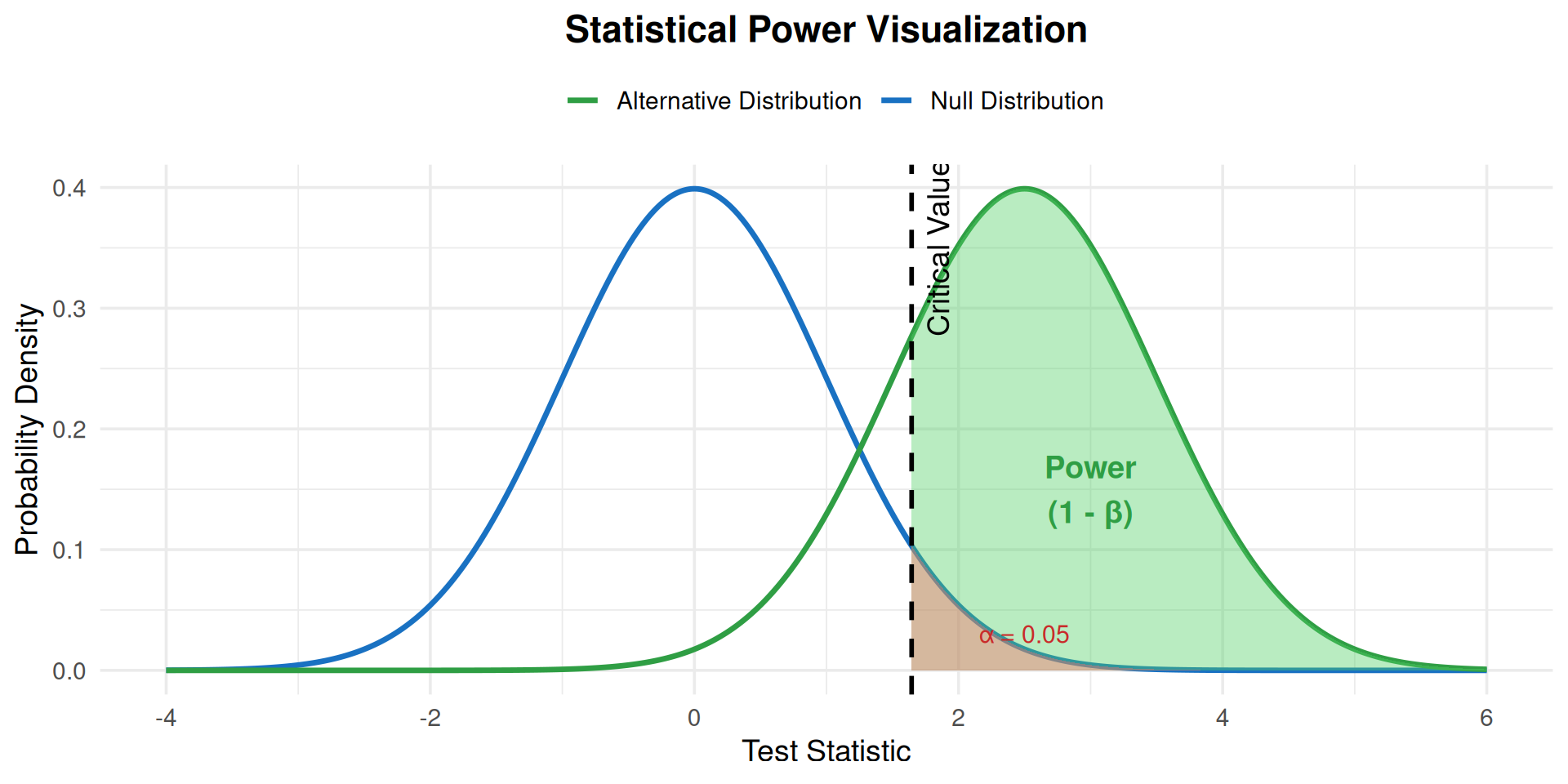

Power in Context

Visualization of statistical power showing the relationship between null and alternative distributions

3 Why Do Power Analysis?

Critical Reasons

1. Resource Efficiency
   • Avoid wasting time, money, and effort on underpowered studies
   • Don’t collect more data than necessary
2. Ethical Considerations
   • Minimize participant burden and exposure to risks
   • Ensure research has realistic chance of success
3. Scientific Integrity
   • Detect meaningful effects when they exist
   • Avoid publishing false negatives
4. Funding Requirements
   • Grant agencies require power analyses
   • Demonstrates research feasibility

Consequences of Low Power

Too Small Sample

• Miss effective interventions (Type II error)
• Waste teacher and student time
• Publish false negatives (“it doesn’t work”)
• Discourage future research on promising approaches
• Contribute to replication crisis

Too Large Sample

• Unnecessary recruitment burden on schools
• Waste limited education funding
• Find statistically significant but educationally trivial results
• Fewer resources for other important studies

Power Analysis is NOT About Gaming the System

Common Misconceptions

Power analysis should help determine if a question can be reasonably answered, not:

• Justify a predetermined sample size
• Defend what you want to study anyway
• Manipulate effect sizes to get funding
• Written defensively after the study is planned

4 The Logic of Power Analysis

Five Key Components

Every power analysis involves specifying values for:

1. Significance Level (α): Usually 0.05
2. Power (1 - β): Usually 0.80 (minimum 80%)
3. Effect Size (δ): Meaningful difference to detect
4. Variability (σ): Standard deviation of measurements
5. Sample Size (n): What we usually solve for

Note

If you know any four, you can calculate the fifth!

Significance Level (α)

• Type I error rate - probability of false positive
• Conventionally set at α = 0.05 (5%)
• Controls how “strict” we are about declaring effects significant
• Relates to critical value for hypothesis testing

# Critical value for one-tailed test, alpha = 0.05
qnorm(0.95)  # z = 1.645

[1] 1.644854

# Critical value for two-tailed test, alpha = 0.05
qnorm(0.975)  # z = 1.96

[1] 1.959964

Power (1 - β)

• Probability of detecting a true effect
• Conventionally set at 0.80 (80%) or higher
• Higher power = more certainty in detecting effects
• Common choices: 70%, 80%, 90%

Minimum Standards

• 80% power is considered minimum acceptable
• 90% power for clinical trials or high-stakes research
• Choice depends on how certain you want to be

Effect Size (δ)

The meaningful difference you want to detect

Must be specified based on:

• Prior research literature
• Educational/practical significance (not just statistical)
• Subject matter expertise
• Pilot data

Cohen’s d (Standardized Effect Size)

Often expressed as: \(d = \frac{|\delta|}{\sigma}\) (effect size relative to SD)

• Small effect: d ≈ 0.2 (subtle but meaningful in education)
• Medium effect: d ≈ 0.5 (typical for many interventions)
• Large effect: d ≈ 0.8 (rare in education research)

Reality check: Most education interventions have d = 0.2-0.4

Variability (σ)

Standard deviation of measurements

Estimate from:

• Prior published research
• Pilot studies
• Similar studies in literature
• Expert knowledge

Impact on Sample Size

Sample size increases proportionally to variance: \[n \propto \sigma^2\] Doubling the SD quadruples the required sample size!

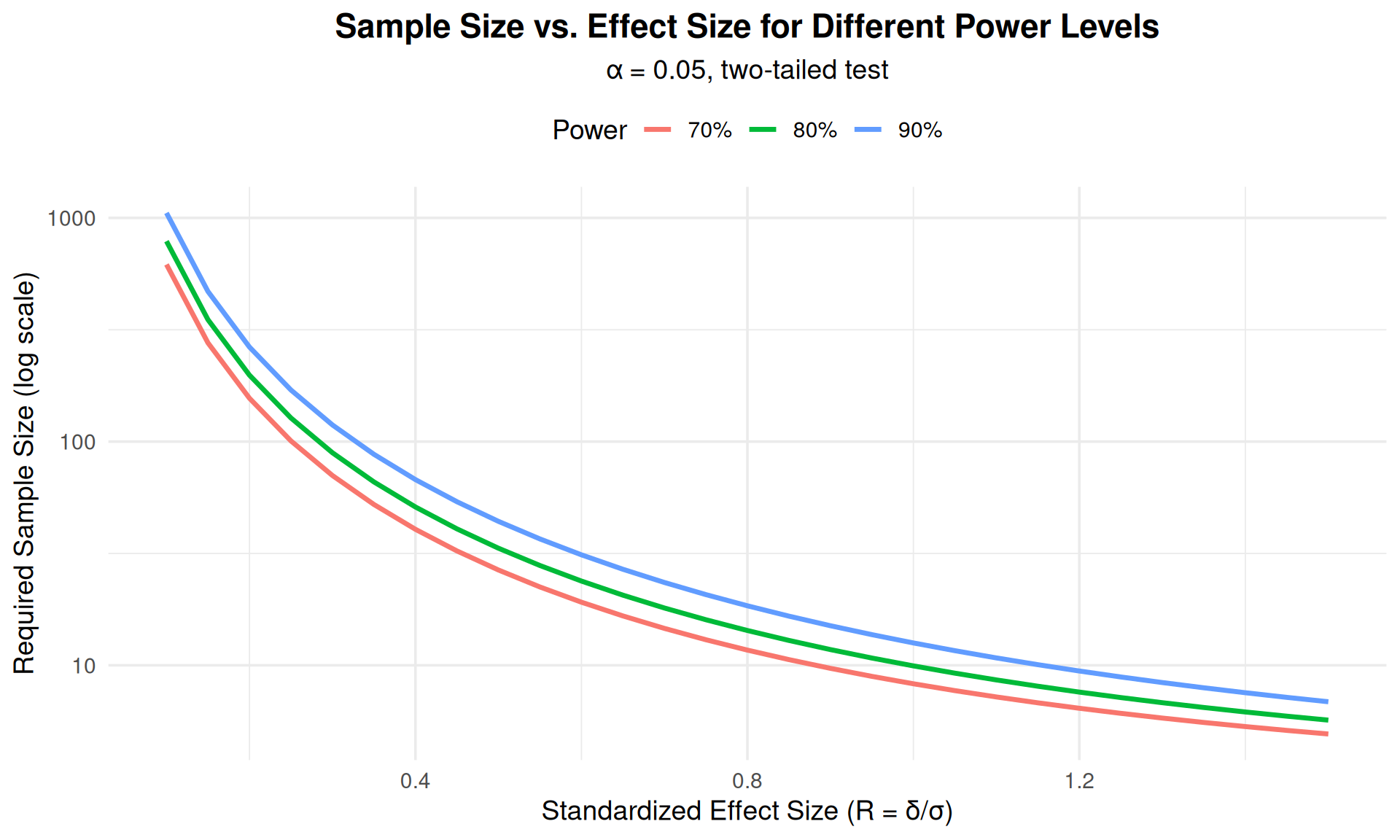

Relationships Among Components

Understanding (σ/δ)²: The Signal-to-Noise Ratio

Why Does Sample Size Depend on (σ/δ)²?

The ratio σ/δ represents noise-to-signal:

• δ = effect size (the “signal” you want to detect)
• σ = variability (the “noise” that obscures the signal)

Intuitive examples:

Scenario	δ	σ	σ/δ	Interpretation	n needed
Strong signal, low noise	10	5	0.5	Easy to detect	Small
Weak signal, low noise	5	5	1.0	Moderate	Medium
Weak signal, high noise	5	20	4.0	Hard to detect	Large

Why squared?

• Doubling noise (σ) means 4× more participants needed
• Halving effect size (δ) means 4× more participants needed
• This quadratic relationship comes from variance, not an arbitrary choice!

Key Facts to Remember

1. Sample size increases with power: More power → larger sample needed
2. Sample size increases with smaller detectable differences: Smaller effect → larger sample (quadratically!)
3. Sample size increases with variance: More variability → larger sample (quadratically!)
4. One-sided tests require smaller samples than two-sided tests
5. The (z_α + z_β)² term represents the required distance between distributions
6. The (σ/δ)² term represents the signal-to-noise ratio

5 Power Analysis: One-Sample Case

One-Sample Situation

Testing if a mean differs from a known value:

• \(H_0: \mu = \mu_0\) (null hypothesis)
• \(H_1: \mu \neq \mu_0\) or \(\mu < \mu_0\) or \(\mu > \mu_0\) (alternative)

Required sample size formula:

\[n = (z_\alpha + z_\beta)^2 \left(\frac{\sigma}{\delta}\right)^2\]

where:

• \(z_\alpha\) = critical value for significance level
• \(z_\beta\) = critical value for power
• \(\delta = \mu_1 - \mu_0\) = effect size

Where Does This Formula Come From?

The Logic Behind the Formula

Key insight: The distributions under H₀ and H₁ must be separated enough that:

1. The critical value from H₀ cuts off α (Type I error)
2. The critical value from H₁ cuts off β (Type II error)

The distance between distributions (in standard error units) must span both critical values:

\[\frac{\delta}{SE} = z_\alpha + z_\beta\]

Since \(SE = \frac{\sigma}{\sqrt{n}}\), we have:

\[\frac{\delta}{\sigma/\sqrt{n}} = z_\alpha + z_\beta\]

Solving for n: \[\sqrt{n} = \frac{(z_\alpha + z_\beta) \cdot \sigma}{\delta}\]

Square both sides: \[n = (z_\alpha + z_\beta)^2 \left(\frac{\sigma}{\delta}\right)^2\]

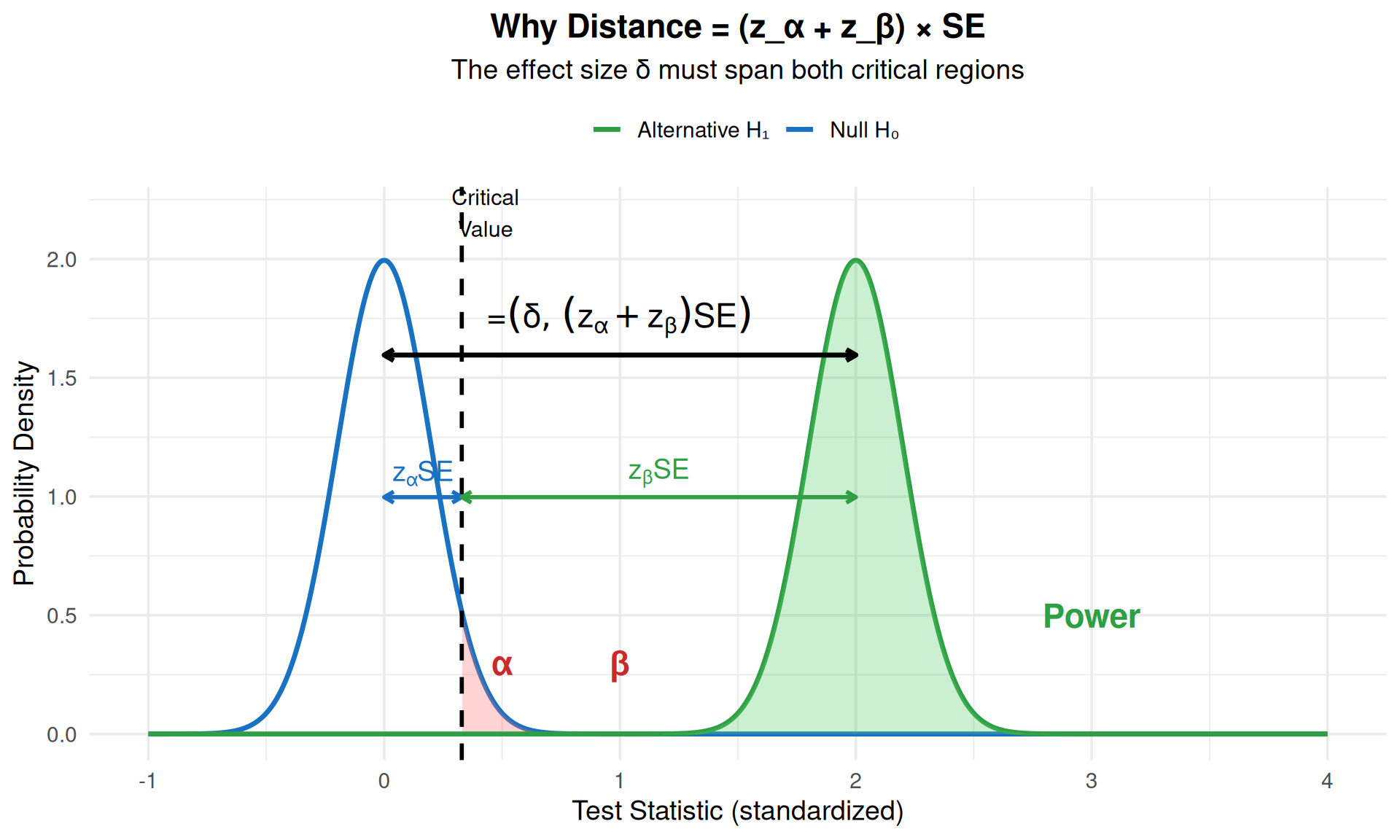

Visual Intuition

The Key Insight

The formula squared because:

1. We need: \(\delta = (z_\alpha + z_\beta) \times SE\)
2. Since \(SE = \sigma/\sqrt{n}\), we have: \(\delta = (z_\alpha + z_\beta) \times \frac{\sigma}{\sqrt{n}}\)
3. Rearranging for \(\sqrt{n}\): \(\sqrt{n} = \frac{(z_\alpha + z_\beta) \times \sigma}{\delta}\)
4. Squaring both sides to isolate n: \(n = \frac{(z_\alpha + z_\beta)^2 \times \sigma^2}{\delta^2}\)

The squaring comes from solving for n, not from squaring the sum first!

Example: Reading Achievement Study

Research Question

Do students in a new literacy program have higher reading scores compared to the national average?

Known Information:

• National average reading score: μ₀ = 100
• Standard deviation: σ = 20
• Meaningful difference: δ = 5 points (improvement)
• Desired power: 80%
• Significance level: α = 0.05 (one-tailed)

Calculating Sample Size: Step by Step

# Given values
mu0 <- 100      # national average score
sigma <- 20     # standard deviation
delta <- 5      # meaningful improvement
alpha <- 0.05   # significance level
power <- 0.80   # desired power

# Step 1: Find critical values
z_alpha <- qnorm(1 - alpha)  # = 1.645 for one-tailed
z_beta <- qnorm(power)       # = 0.842 for 80% power

cat("Step 1: Critical values\n")
cat("  z_alpha =", round(z_alpha, 3), "\n")
cat("  z_beta  =", round(z_beta, 3), "\n\n")

# Step 2: Calculate required distance (in SE units)
required_distance <- z_alpha + z_beta
cat("Step 2: Required distance between distributions\n")
cat("  z_alpha + z_beta =", round(required_distance, 3), "standard errors\n\n")

# Step 3: Set up the equation
# We need: delta = required_distance × SE
# We need: delta = required_distance × (sigma / sqrt(n))
# Solve for sqrt(n)
sqrt_n <- required_distance * sigma / delta
cat("Step 3: Solve for sqrt(n)\n")
cat("  sqrt(n) = (", round(required_distance, 3), " × ", sigma, ") / ", delta, "\n")
cat("  sqrt(n) =", round(sqrt_n, 3), "\n\n")

# Step 4: Square to get n
n <- sqrt_n^2
cat("Step 4: Square to get n\n")
cat("  n = (", round(sqrt_n, 3), ")²\n")
cat("  n =", round(n, 2), "\n\n")

cat("Required sample size:", ceiling(n), "students")

Step 1: Critical values
  z_alpha = 1.645
  z_beta  = 0.842

Step 2: Required distance between distributions
  z_alpha + z_beta = 2.486 standard errors

Step 3: Solve for sqrt(n)
  sqrt(n) = ( 2.486  ×  20 ) /  5
  sqrt(n) = 9.946

Step 4: Square to get n
  n = ( 9.946 )²
  n = 98.92

Required sample size: 99 students

Formula Summary: What Each Part Means

\[n = \underbrace{(z_\alpha + z_\beta)^2}_{\text{Separation needed}} \times \underbrace{\left(\frac{\sigma}{\delta}\right)^2}_{\text{Signal-to-noise}}\]

\((z_\alpha + z_\beta)^2\)

What it controls:

• Type I error (α)
• Type II error (β)
• Power (1 - β)

Typical values:

• α = 0.05, Power = 80%
• z_α = 1.645, z_β = 0.842
• Sum = 2.487
• \((z_\alpha + z_\beta)^2 \approx 6.2\)

\((\sigma/\delta)^2\)

What it controls:

• Effect size you want to detect (δ)
• Population variability (σ)

Typical values:

• Small effect: σ/δ = 5 → 25
• Medium effect: σ/δ = 2 → 4
• Large effect: σ/δ = 1.25 → 1.6

Total: n = 6.2 × (σ/δ)²

Using the pwr Package

# Effect size (standardized)
effect_size <- abs(delta) / sigma

# Power analysis using pwr package
result <- pwr.t.test(
  d = effect_size,
  sig.level = alpha,
  power = power,
  type = "one.sample",
  alternative = "greater"  # or "two.sided", "less", "greater"
)

print(result)

     One-sample t test power calculation

              n = 100.2877
              d = 0.25
      sig.level = 0.05
          power = 0.8
    alternative = greater

# Verify our manual calculation matches
cat("\nManual calculation:",
    ceiling(n),
    "\npwr package:",
    abs(ceiling(result$n)))

Manual calculation: 99
pwr package: 101

Paired Comparisons

The one-sample formula applies to paired (blocked) designs:

Response: \(D = Y_2 - Y_1\) (difference between paired measurements)

Examples:

• Pre-test vs. Post-test
• Treatment vs. Control on same subject
• Left eye vs. Right eye

Key: Need SD of the differences, not individual measurements

Example: Pre-Post Test Anxiety Study

Research Question

Does a mindfulness intervention reduce student test anxiety?

Study Design:

• Paired comparison: post-intervention vs. baseline on same students
• SD of differences: σ = 5 points
• Meaningful reduction: δ = -2.5 points
• Power: 80%, α = 0.05

# Calculate sample size for paired comparison
sigma_diff <- 5.0
delta_anxiety <- -2.5
effect <- abs(delta_anxiety) / sigma_diff

pwr.t.test(d = effect, sig.level = 0.05, power = 0.80,
           type = "paired", alternative = "two.sided")

     Paired t test power calculation

              n = 33.36713
              d = 0.5
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

NOTE: n is number of *pairs*

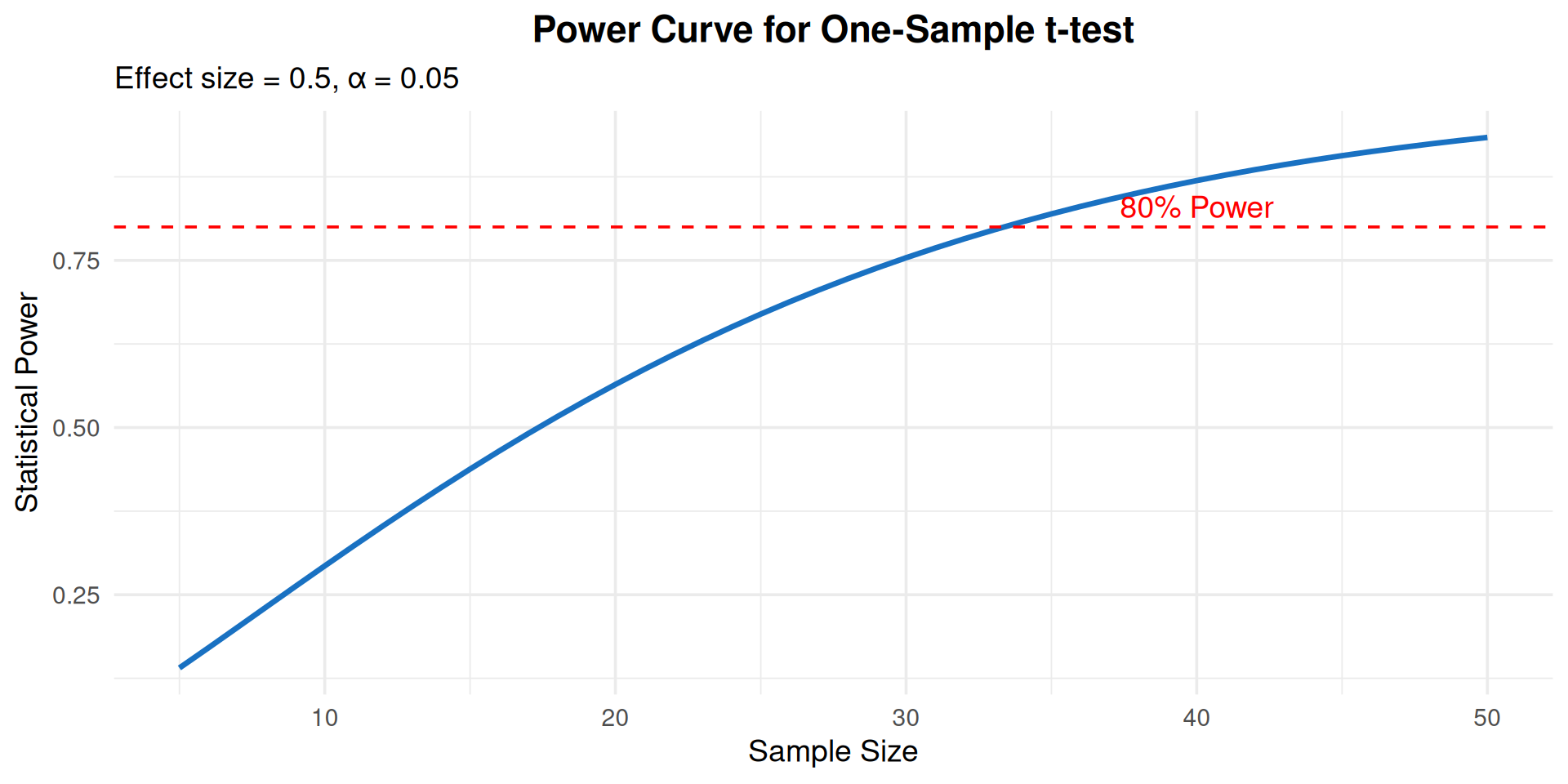

Exploring Power Curves

# Create power curve for different sample sizes
sample_sizes <- seq(5, 50, by = 1)
effect_size <- 0.5

power_values <- sapply(sample_sizes, function(n) {
  pwr.t.test(n = n, d = effect_size, sig.level = 0.05,
             type = "one.sample", alternative = "two.sided")$power
})

ggplot(data.frame(n = sample_sizes, power = power_values),
       aes(x = n, y = power)) +
  geom_line(linewidth = 1.2, color = "#1971c2") +
  geom_hline(yintercept = 0.80, linetype = "dashed", color = "red") +
  annotate("text", x = 40, y = 0.83, label = "80% Power", color = "red") +
  labs(x = "Sample Size", y = "Statistical Power",
       title = "Power Curve for One-Sample t-test",
       subtitle = "Effect size = 0.5, α = 0.05") +
  theme_minimal(base_size = 14) +
  theme(plot.title = element_text(hjust = 0.5, face = "bold"))

6 Power Analysis: Two-Sample Case

Two-Sample Comparison

Comparing means of two independent groups:

• \(H_0: \mu_2 - \mu_1 = 0\)
• \(H_1: \mu_2 - \mu_1 \neq 0\) (or \(<\) or \(>\))

Both means are unknown - different from one-sample case!

Two-Sample Formulas

Case 1: Unequal Variances

Total sample size: \[N = (z_\alpha + z_\beta)^2 \left[\frac{\sigma_1 + \sigma_2}{\delta}\right]^2\]

Allocate samples proportional to SDs: \[n_1 = N \cdot \frac{\sigma_1}{\sigma_1 + \sigma_2}, \quad n_2 = N \cdot \frac{\sigma_2}{\sigma_1 + \sigma_2}\]

Case 2: Equal Variances

Sample size per group: \[n = 2(z_\alpha + z_\beta)^2 \left(\frac{\sigma}{\delta}\right)^2\]

Example: Math Achievement by SES

Research Question

Compare math achievement scores between students from high and low socioeconomic status (SES) backgrounds

Known Information:

• High SES group: σ₁ = 12 points
• Low SES group: σ₂ = 15 points (larger variability)
• Meaningful difference: δ = 10 points
• Power: 80%, α = 0.05

Calculation: Unequal Variances

# Given values
sigma1 <- 12    # High SES SD
sigma2 <- 15    # Low SES SD
delta <- 10     # Effect size
alpha <- 0.05
power <- 0.80

# Critical values
z_alpha <- qnorm(1 - alpha/2, lower.tail = TRUE)  # two-tailed
z_beta <- qnorm(power, lower.tail = TRUE)

# Total sample size
N <- (z_alpha + z_beta)^2 * ((sigma1 + sigma2) / delta)^2

# Allocate proportional to SDs
n1 <- ceiling(N * sigma1 / (sigma1 + sigma2))
n2 <- ceiling(N * sigma2 / (sigma1 + sigma2))

cat("High SES students:", n1, "\n")

High SES students: 26

cat("Low SES students:", n2, "\n")

Low SES students: 32

cat("Total sample size:", n1 + n2)

Total sample size: 58

Using pwr for Two-Sample Tests

# For equal variances (using larger SD as planning value)
sigma <- sqrt((sigma1^2 + sigma2^2)/2) # pooled standard deviation
effect_size <- abs(delta) / sigma # Cohen' d

result <- pwr.t.test(
  d = effect_size,
  sig.level = 0.05,
  power = 0.80,
  type = "two.sample",
  alternative = "two.sided"
)

print(result)

     Two-sample t test power calculation

              n = 29.95364
              d = 0.7362102
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

NOTE: n is number in *each* group

cat("\nTotal sample size:", ceiling(result$n * 2))

Total sample size: 60

Example: Study Skills Workshop

Research Question

Does a study skills workshop improve GPA compared to no intervention?

Study Design:

• Two independent groups (workshop vs. control)
• Equal SDs: σ = 0.5 GPA points
• Meaningful change: δ = 0.3 GPA points
• Power: 80%, α = 0.05

sigma <- 0.5
delta <- 0.3
effect_size <- delta / sigma

pwr.t.test(d = effect_size, sig.level = 0.05, power = 0.80,
           type = "two.sample", alternative = "two.sided")

     Two-sample t test power calculation

              n = 44.58577
              d = 0.6
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

NOTE: n is number in *each* group

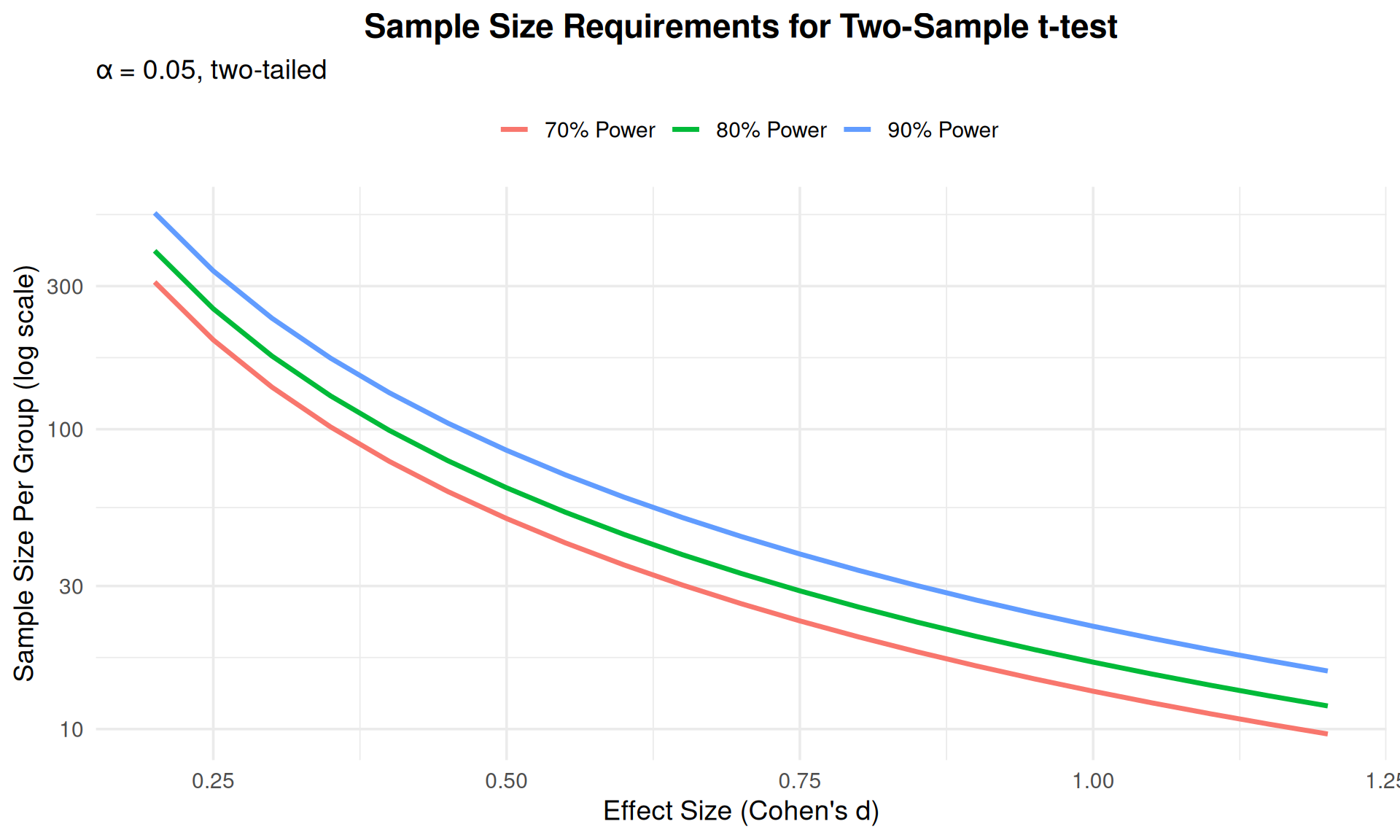

Visualizing Two-Sample Power

7 Power Analysis: Other Designs

Log-Normal Distributions

When data are log-normally distributed:

• Easier to specify effects as percentage changes
• Variability expressed as coefficient of variation

\[c = \frac{\sqrt{\text{Var}(Y)}}{E(Y)}\]

Sample size per group: \[n = \frac{2(z_\alpha + z_\beta)^2 c^2}{[\log(1+f)]^2}\]

where \(f\) is the proportionate change (e.g., 0.20 for 20% increase)

Example: Reaction Time Study

Research Question

Compare reaction times between students with ADHD receiving medication vs. placebo

Known Information:

• Coefficient of variation: c = 0.30
• Expected difference: 20% faster reaction time with medication (f = -0.20)
• Power: 80%, α = 0.05

Note: Reaction times typically follow log-normal distributions

# Given values
c <- 0.30       # Coefficient of variation
f <- 0.20       # 20% proportionate change
alpha <- 0.05
power <- 0.80

# Critical values
z_alpha <- qnorm(alpha, lower.tail = TRUE)
z_beta <- qnorm(1 - power, lower.tail = TRUE)

# Sample size calculation
n <- 2 * (z_alpha + z_beta)^2 * c^2 / (log(1 + f))^2
cat("Sample size per group:", ceiling(n), "\n")

Sample size per group: 34

cat("Total sample size:", ceiling(n) * 2)

Total sample size: 68

Cluster Randomized Designs

Clusters = groups of experimental units

Common examples:

• In education: Students within classrooms, classrooms within schools
• Also: Patients within clinics, siblings within families

Intracluster Correlation (ρ):

• Measures similarity within clusters
• Range: 0 to 1
• ρ = 0: units independent (no clustering effect)
• ρ = 1: units identical within cluster
• Typical values in education: 0.10-0.25 for students in classrooms

Sample size adjustment: \[n = km = 2(z_\alpha + z_\beta)^2 \left(\frac{\sigma}{\delta}\right)^2 [1 + (m-1)\rho]\]

where \(k\) = number of clusters, \(m\) = units per cluster

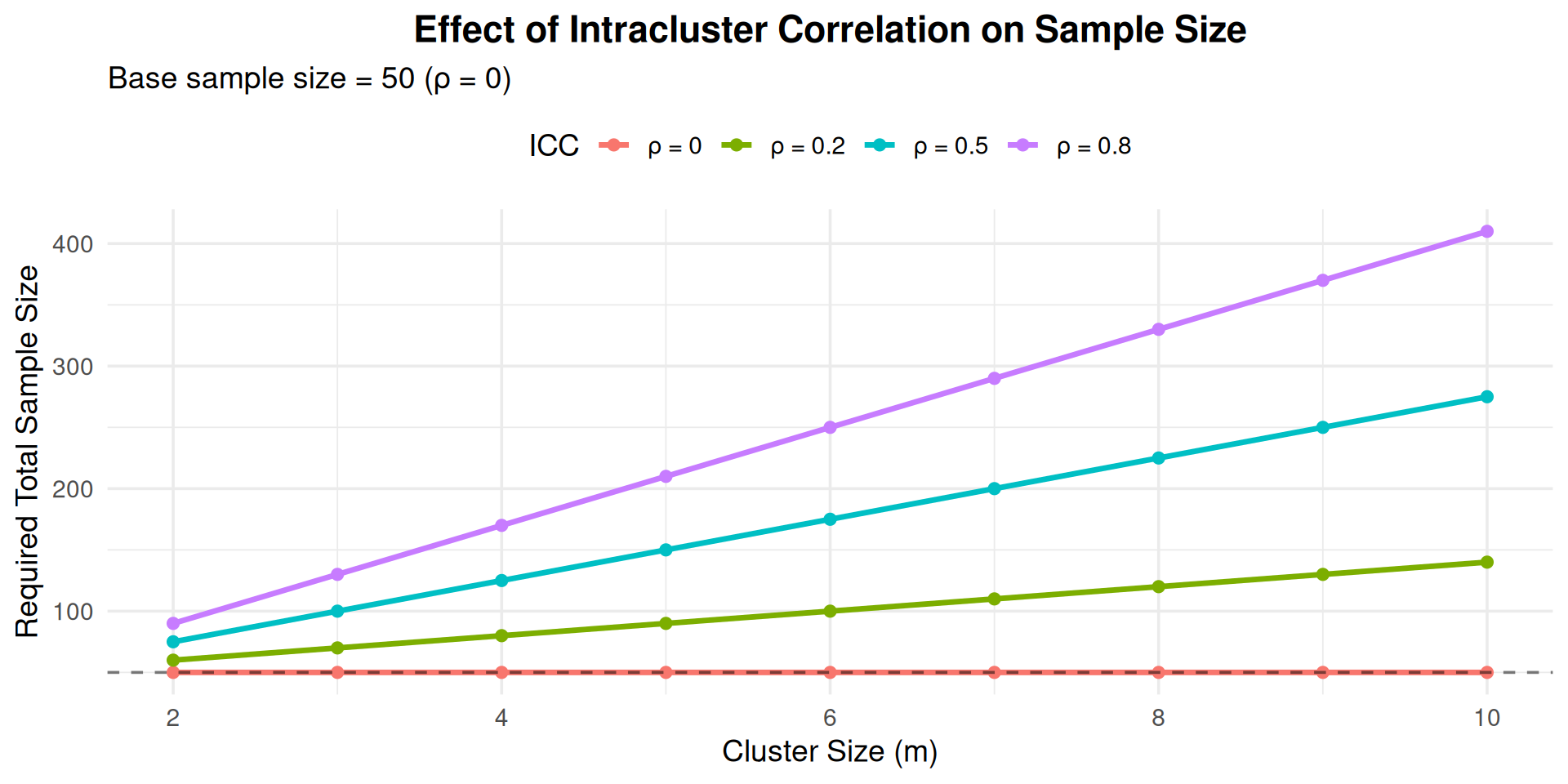

Impact of Intracluster Correlation

Cluster Design: Key Insights

1. High ICC → Need more clusters, not more units per cluster
   • With ρ = 0.20, adding more students per classroom doesn’t help proportionally
   • Better to recruit more classrooms with fewer students each
   • In education research, typical ICC for classrooms: 0.10-0.25
2. Ignoring ICC leads to underpowered studies
   • Don’t calculate as if students are independent
   • Must account for clustering in design
   • Failure to account for ICC is a common error in educational research
3. Design Efficiency
   • Maximize number of clusters (k = classrooms, schools)
   • Consider cluster size (m) and practical constraints
   • Balance statistical needs with recruitment feasibility

Example: Students in Classrooms

Scenario

• Need 100 students total with ρ = 0.20
• Cluster size m = 20 (students per classroom)

Incorrect approach (ignoring ICC): \[n = 100 \text{ students} \rightarrow 5 \text{ classrooms}\]

Correct approach (accounting for ICC): \[n = 100 \times [1 + (20-1)(0.20)] = 100 \times 4.8 = 480 \text{ students}\] \[\rightarrow 24 \text{ classrooms needed (12 per condition)}\]

Warning

Always account for clustering structure in your design!

8 Power Analysis: ANOVA Designs

One-Way ANOVA

Comparing means across multiple groups (k ≥ 3)

Effect size (f): \[f = \frac{\sigma_{\text{between}}}{\sigma_{\text{within}}}\]

Conventional values:

• Small: f = 0.10
• Medium: f = 0.25
• Large: f = 0.40

ANOVA Power Analysis in R

# Example: Comparing 4 groups
k <- 4              # number of groups
effect_size <- 0.25 # medium effect
alpha <- 0.05
power <- 0.80

# Power analysis
pwr.anova.test(
  k = k,
  f = effect_size,
  sig.level = alpha,
  power = power
)

     Balanced one-way analysis of variance power calculation

              k = 4
              n = 44.59927
              f = 0.25
      sig.level = 0.05
          power = 0.8

NOTE: n is number in each group

Factorial ANOVA

For 2×2 factorial design:

• Two factors, each with 2 levels
• Tests main effects and interaction

Note

Note: pwr.f2.test() returns v (denominator degrees of freedom). To get total sample size: \(n = v + u + 1\)

# Effect size for factorial design
effect_size <- 0.25
alpha <- 0.05
power <- 0.80

# Numerator df = (levels - 1)
# For 2x2: df = 1 for each main effect and interaction

result <- pwr.f2.test(
  u = 1,              # numerator df for one effect
  f2 = effect_size^2, # f-squared effect size
  sig.level = alpha,
  power = power
)

print(result)

     Multiple regression power calculation

              u = 1
              v = 125.5312
             f2 = 0.0625
      sig.level = 0.05
          power = 0.8

# Calculate total sample size from v (denominator df)
# Formula: n = v + u + 1
n_total <- ceiling(result$v + result$u + 1)
cat("\nTotal sample size needed:", n_total, "participants")

Total sample size needed: 128 participants

Understanding pwr.f2.test Output

Interpreting the Results

When using pwr.f2.test(), the output shows:

• u = numerator degrees of freedom (number of predictors/effects tested)
• v = denominator degrees of freedom (error df)
• f2 = Cohen’s f² effect size
• sig.level = α level
• power = statistical power

Important: To get the total sample size needed:

\[n = v + u + 1\]

Example: If u = 1 and v = 125.53, you need n = 128 participants total.

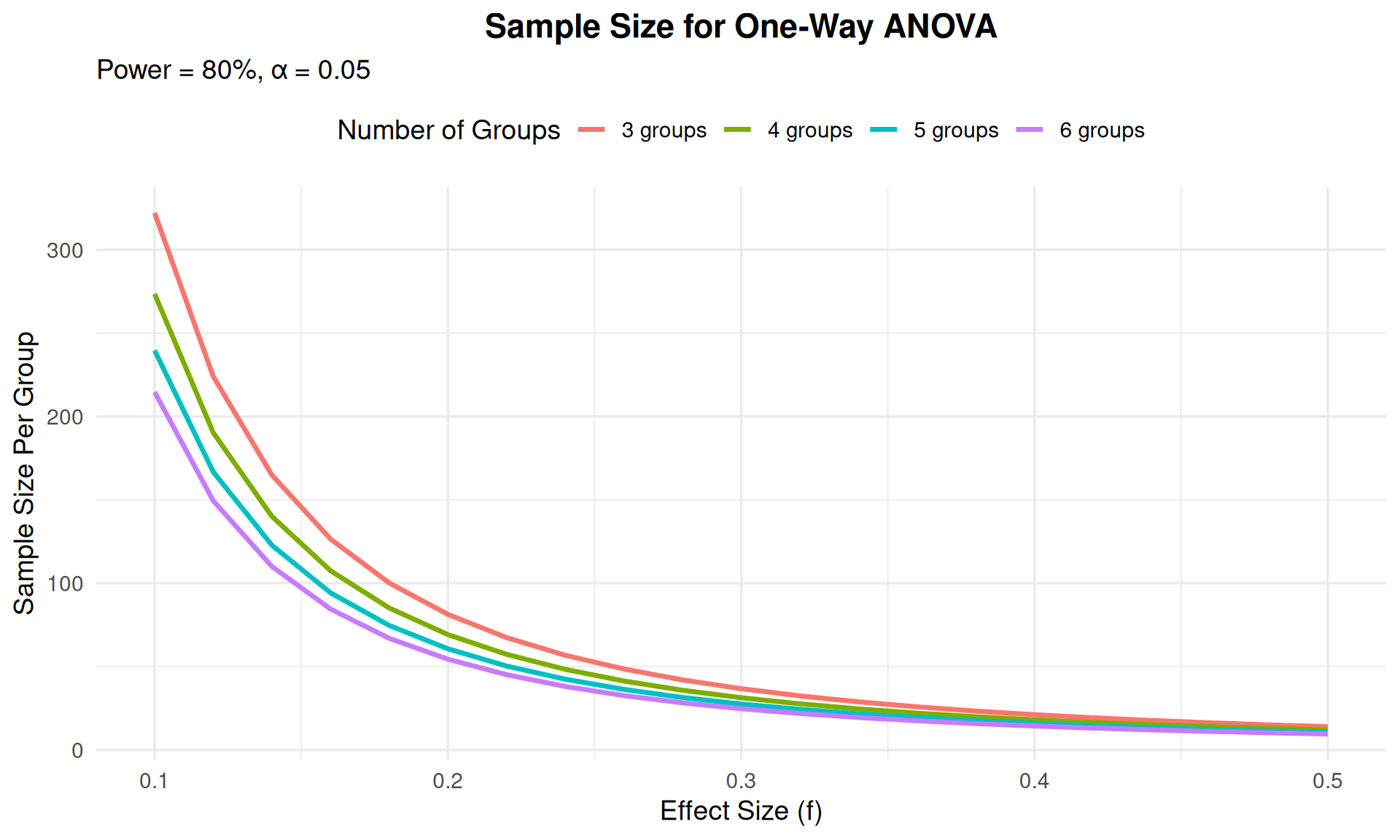

Visualizing ANOVA Power

9 Power Analysis: Proportions and Correlations

Comparing Two Proportions

Testing difference between two proportions (e.g., success rates)

Effect size (h): \[h = 2[\arcsin(\sqrt{p_1}) - \arcsin(\sqrt{p_2})]\]

# Example: Compare graduation rates
p1 <- 0.70  # Control group
p2 <- 0.80  # Treatment group

# Calculate effect size
ES.h(p1, p2)

[1] -0.2319843

# Power analysis
pwr.2p.test(
  h = ES.h(p1, p2),
  sig.level = 0.05,
  power = 0.80,
  alternative = "two.sided"
)

     Difference of proportion power calculation for binomial distribution (arcsine transformation)

              h = 0.2319843
              n = 291.6887
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

NOTE: same sample sizes

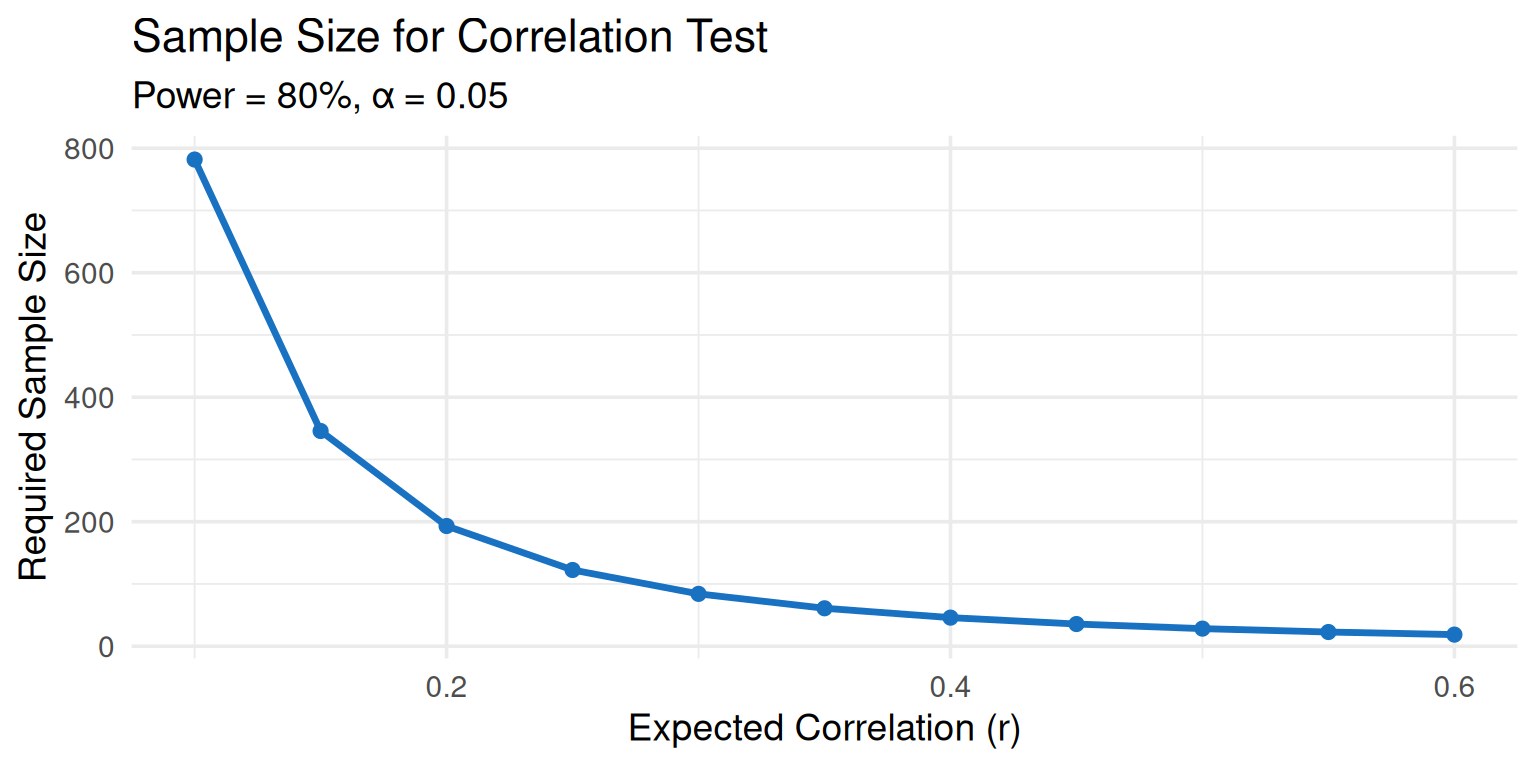

Testing Correlations

Testing if correlation differs from zero

Effect size = r (the correlation itself)

# Test if correlation r = 0.30 is significant
r <- 0.30

pwr.r.test(
  r = r,
  sig.level = 0.05,
  power = 0.80,
  alternative = "two.sided"
)

     approximate correlation power calculation (arctangh transformation)

              n = 84.07364
              r = 0.3
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

Chi-Square Tests

For contingency tables:

Effect size (w):

• Small: w = 0.10
• Medium: w = 0.30
• Large: w = 0.50

# Example: 3x3 contingency table
df <- (3 - 1) * (3 - 1)  # degrees of freedom

pwr.chisq.test(
  w = 0.30,         # medium effect
  df = df,
  sig.level = 0.05,
  power = 0.80
)

     Chi squared power calculation

              w = 0.3
              N = 132.6143
             df = 4
      sig.level = 0.05
          power = 0.8

NOTE: N is the number of observations

10 Software Tools for Power Analysis

Available Software

R Packages

• pwr: Most common for psychology/education
• WebPower: Web-based interface
• simr: Simulation-based for mixed models
• powerAnalysis: Educational resource
• clusterPower: Cluster randomized trials

Standalone Software

• **G*Power**: Free, widely used in psychology
• Optimal Design: Multilevel designs in education
• PowerUpR: R package for education research
• PASS: Commercial, extensive capabilities
• Russell Lenth’s applets: Free online tools

Using G*Power

Popular free software for power analysis:

1. Select test family (t-test, ANOVA, regression, etc.)

2. Choose specific test type

3. Specify:

   • Effect size
   • α level
   • Power or sample size

4. Get results with visualizations

Download: https://www.psychologie.hhu.de/arbeitsgruppen/allgemeine-psychologie-und-arbeitspsychologie/gpower

11 Practical Guidelines

Before Running Your Study

1. Review literature for:

   • Expected effect sizes
   • Variability estimates
   • Similar study designs

2. Consider pilot studies to:

   • Estimate parameters
   • Test procedures
   • Refine hypotheses

3. Specify meaningful effects:

   • Clinical/practical significance
   • Minimum detectable difference
   • Cost-benefit considerations

Conducting Power Analysis

1. Be conservative:

   • Use realistic (not optimistic) effect sizes
   • Account for attrition/dropout
   • Consider multiple comparisons

2. Perform sensitivity analysis:

   • Vary effect sizes
   • Check impact of assumptions
   • Explore “what if” scenarios

3. Document everything:

   • Assumptions and their sources
   • Calculations and software used
   • Rationale for parameter choices

Common Pitfalls to Avoid

Don’t:

1. Manipulate effect sizes to justify small samples
2. Ignore clustering or dependence
3. Use published effect sizes uncritically (publication bias!)
4. Forget about attrition/missing data
5. Conduct power analysis after data collection (“post-hoc power”)
6. Ignore practical constraints (budget, time, recruitment)

Post-Hoc Power Analysis

Why Not to Do It

Post-hoc power analysis (after collecting data) is controversial:

• Circular reasoning: uses observed effect to estimate power
• Non-significant results always have low post-hoc power
• Doesn’t change interpretation of results
• Confidence intervals more informative

Exception: Informing future studies with pilot data

12 Applied Examples

Example 1: Reading Intervention

Research Question

Does a new reading intervention improve test scores compared to standard curriculum?

Information:

• Two independent groups (intervention vs. control)
• σ = 15 points (from prior studies)
• Meaningful improvement: 5 points
• Power: 80%, α = 0.05 (two-tailed)

effect_size <- 5 / 15  # 0.333
pwr.t.test(d = effect_size, sig.level = 0.05, power = 0.80,
           type = "two.sample", alternative = "two.sided")

     Two-sample t test power calculation

              n = 142.2462
              d = 0.3333333
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

NOTE: n is number in *each* group

Need ~143 students per group, 286 total

Example 2: Class Size Study

Research Question

Do smaller class sizes improve student achievement? Compare 3 class size conditions.

Information:

• Three groups: Small (15), Medium (25), Large (35)
• σ = 10 points
• Expected η² = 0.06 (medium effect)
• Convert to f: \(f = \sqrt{\frac{\eta^2}{1-\eta^2}} = 0.25\)

eta_squared <- 0.06
f <- sqrt(eta_squared / (1 - eta_squared))

pwr.anova.test(k = 3, f = f, sig.level = 0.05, power = 0.80)

     Balanced one-way analysis of variance power calculation

              k = 3
              n = 51.32635
              f = 0.2526456
      sig.level = 0.05
          power = 0.8

NOTE: n is number in each group

Need ~52 students per class, 156 total

Example 3: Correlation Study

Research Question

Is there a significant correlation between homework time and GPA?

Expected correlation: r = 0.30 (medium)

pwr.r.test(r = 0.30, sig.level = 0.05, power = 0.80,
           alternative = "two.sided")

     approximate correlation power calculation (arctangh transformation)

              n = 84.07364
              r = 0.3
      sig.level = 0.05
          power = 0.8
    alternative = two.sided

Need ~85 students

Example 4: Multilevel Design

Research Question

Testing intervention effects with students nested in classrooms

Information:

• 20 students per classroom
• ICC = 0.15 (typical for education)
• Effect size d = 0.40

# Base sample size (ignoring clustering)
base <- pwr.t.test(d = 0.40, power = 0.80, sig.level = 0.05,
                   type = "two.sample")
base_n <- ceiling(base$n)

# Adjust for clustering
m <- 20           # cluster size
rho <- 0.15       # ICC
design_effect <- 1 + (m - 1) * rho

adjusted_n <- ceiling(base_n * design_effect)

cat("Base sample size per group:", base_n, "\n")

Base sample size per group: 100

cat("Design effect:", round(design_effect, 2), "\n")

Design effect: 3.85

cat("Adjusted sample size per group:", adjusted_n, "\n")

Adjusted sample size per group: 385

cat("Number of classrooms needed per group:",
    ceiling(adjusted_n / m))

Number of classrooms needed per group: 20

13 Summary and Recommendations

Key Takeaways

1. Power analysis is essential for ethical, efficient research

2. Minimum 80% power to detect meaningful effects

3. Four key inputs: α, power, effect size, variability

4. Sample size relationships:

   • Increases with desired power
   • Increases quadratically with smaller effect sizes
   • Increases with greater variability

5. Account for study design: clustering, pairing, multiple groups

Recommendations for Practice

Planning Stage

• Conduct early in research design
• Use realistic effect sizes
• Consider attrition
• Perform sensitivity analyses
• Document all assumptions

Resources

• Use established software (pwr, G*Power)
• Consult statistician
• Review similar studies
• Conduct pilot studies
• Get peer review of power analysis

Decision Framework

flowchart TD
    A[Research Question] --> B{Feasible<br/>Sample Size?}
    B -->|Yes| C[Conduct Study]
    B -->|No| D{Can Increase<br/>Sample?}
    D -->|Yes| E[Revise Budget/<br/>Timeline]
    D -->|No| F{Can Accept<br/>Larger δ?}
    F -->|Yes| G[Revise Research<br/>Question]
    F -->|No| H[Abandon/<br/>Restructure]
    E --> C
    G --> C

    style C fill:#51cf66
    style H fill:#ff6b6b

flowchart TD
    A[Research Question] --> B{Feasible<br/>Sample Size?}
    B -->|Yes| C[Conduct Study]
    B -->|No| D{Can Increase<br/>Sample?}
    D -->|Yes| E[Revise Budget/<br/>Timeline]
    D -->|No| F{Can Accept<br/>Larger δ?}
    F -->|Yes| G[Revise Research<br/>Question]
    F -->|No| H[Abandon/<br/>Restructure]
    E --> C
    G --> C

    style C fill:#51cf66
    style H fill:#ff6b6b

Further Reading

1. Cohen, J. (1988). Statistical power analysis for the behavioral sciences (2nd ed.). Routledge.
   • The classic reference for power analysis in psychology and education
2. Faul, F., Erdfelder, E., Lang, A. G., & Buchner, A. (2007). GPower 3: A flexible statistical power analysis program. Behavior Research Methods, 39*, 175-191.
   • Free software widely used in psychology and education
3. Lakens, D. (2022). Sample size justification. Collabra: Psychology, 8(1), 33267.
   • Modern perspective on justifying sample sizes
4. Spybrook, J., et al. (2011). Optimal Design Plus Empirical Evidence: Documentation for the Optimal Design software.
   • Specialized for cluster randomized trials in education
5. Ledolter, J., & Kardon, R. (2020). Focus on data: Statistical design of experiments and sample size selection using power analysis. Investigative Ophthalmology & Visual Science, 61(8), 11.
   • General principles applicable across disciplines

14 Questions?

Resources and Practice

Practice Exercises

1. Calculate sample size for your own research question
2. Explore power curves with different parameters
3. Compare results across different software
4. Conduct sensitivity analysis

Contact Information

• Office Hours: [Schedule]
• Email: [Your email]
• Course Website: [Link]
