Presentation Outline

Homework 1 has been posted online
Centering and Coding Predictors
Interpreting Parameters in the Model for the Means
Main Effects Within Interactions
GLM Example 1: “Regression” vs. “ANOVA”
Quiz at the end of the class

Today’s Plan

Unit 1: Review dummy coding and centering + A short In-Class quiz
Unit 2: Illustrate the GLM with interaction using on example
Unit 3: Practice R code + Q&A

Unit 1: Dummy Coding and Centering

Today’s Example:

Study examining effect of new instruction method (New: 0=Old, 1=New) on test performance (Test: % correct) in college freshmen vs. senior (Senior: 0=Freshman, 1=Senior). “New by Senior” leads to 4 groups with n = 25 per group (Group: 1= Ctl, 2=T1, 3=T2, 4=T4).

$\text{Test}_p =\beta_0+\beta_1T1_p + \beta_2T2_p + \beta_3T3_p+ e_p \tag{1}$

$\text{Test}_p =\beta_0+\beta_1\text{Senior}_p+\beta_2\text{New}_p+ \beta_3 \text{Senior}_p\text{New}_p+ e_p \tag{2}$

Note that Equation 1 (single group variable model) and Equation 2 (group interaction model) are equivalent models with exactly same sets of parameters.

⌘+C

library(ESRM64503)
library(tidyverse)
library(kableExtra)
library(gt)
data("dataTestExperiment")
dataTestExperiment |>
  group_by(Senior, New) |>
  summarise(
    Mean = mean(Test),
    SD = sd(Test),
    SE = sd(Test) / sqrt(25)
  ) |>
  mutate(
    Statistics = paste0(signif(Mean, 4), "(", round(SD, 2), ")", "[", round(SE, 2), "]")
  ) |>
  dplyr::select(-c(Mean, SD, SE)) |>
  mutate(
    Senior = factor(Senior, levels = 0:1, labels = c("Freshmen", "Senior")),
    New = factor(New, levels = 0:1, labels = c("Old", "New")),
         ) |>
  pivot_wider(names_from = Senior, values_from = Statistics) |>
  kable()

New	Freshmen	Senior
Old	80.2(2.6)[0.52]	82.36(2.93)[0.59]
New	87.96(2.24)[0.45]	87.08(2.9)[0.58]

Note

Test Mean (SD), [SE = $\frac{SD}{\sqrt{n}}$ ]

The Two Sides of a Model

$\mathbf{\text{Test}_p =\color{tomato}{\beta_0+ \beta_1T1_p +\beta_2T2_p + \beta_3T3_p}+ \color{turquoise}{e_p}}$

$\mathbf{\text{Test}_p =\color{tomato}{\beta_0+\beta_1\text{Senior}_p+\beta_2\text{New}_p+ \beta_3 \text{Senior}_p\text{New}_p}+ \color{turquoise}{e_p}}$

Model for the Means (Predicted Values)
- Each person’s expected (predicted) outcome is a function of his/her values on x and z (and their interaction), each measured once person
- Estimated parameters are called fixed effects (here, $\beta_0$ , $\beta_1$ , $\beta_2$ , and $\beta_3$ ); although they have a sampling distribution, they are not random variables
- The number of fixed effects will show up in formulas as k (so k = 4 here)
Model for the Variance
- $e_p \sim N(0, \sigma^2_e) \rightarrow$ ONE residual (unexplained) deviation
- $e_p$ has a mean of 0 with some estimated constant variance $\sigma^2_e$ , is normally distributed, is unrelated across people
- Estimated parameter is the residual variance only (in the model above)

General Form of Two Models

Model for the Means (Predicted Values): The Best Guess of Estimates

$\boldsymbol{\beta} = \begin{bmatrix}{\beta_0,\\ \beta_1,\\ ...,\\\beta_K}\end{bmatrix}$
Model for the Variance: Stability of Estimates
1. Variance-Covariance Matrix of Regression Coefficients (Diagonal: variances of betas (squared standard errors of betas); Non-diagonal: residual covariances between betas)

$\mathbf{\Sigma_{\boldsymbol{\beta}}}$ =

\begin{bmatrix} \color{tomato}{Var(\beta_1)} & Cov(\beta_1,\beta_2) & Cov(\beta_1,\beta_3), \cdots & \cdots & Cov(\beta_1, \beta_K) \\ Cov(\beta_2, \beta_1)& \color{tomato}{Var(\beta_2)}& Cov(\beta_2,\beta_3), \cdots & \cdots & Cov(\beta_2, \beta_K) \\ \dots & \dots & \dots & \dots & \dots \\ \dots & \dots & \dots & \dots & \dots \\ Cov(\beta_K, \beta_1) & Cov(\beta_K, \beta_2)& Cov(\beta_K,\beta_3)& \cdots & \color{tomato}{Var(\beta_K)} \end{bmatrix}

Residual variances $\mathbf{\sigma^2_e}$

Representing the Effects of Predictor Variables

From now on, we will think carefully about how the predictor variables enter into the model for the means rather than the scales of predictors
Why don’t people always care about the scale of predictors (centering):
1. Does NOT affect the amount of outcome variance account for ( $R^2$ )
2. Does NOT affect the outcomes values predicted by the model for the means (so long as the same predictor fixed effects are included)
Why should this matter to us?
1. Because the Intercept = expected outcome value when X = 0
2. Can end up with nonsense values for intercept if X = isn’t in the data
3. We will almost always need to deliberately adjust the scale of the predictor variables so that they have 0 values that could be observed in our data
4. Is much bigger deal in models with random effects (MLM) or GLM once interactions are included

Adjusting the Scale of Predictor Variables

For continuous (quantitative) predictors, we will make the intercept interpretable by centering:
- Centering = subtract as constant from each person’s variable value so that the 0 value falls within the range of the new centered predictor variable
- Typical $\rightarrow$ Center around predictor’s mean: $X_1^\prime = X_1 - \bar{X_1}$
- Better $\rightarrow$ Center around meaningful constant C: $X_1^\prime = X_1 - C$

x <- rnorm(100, mean = 1, sd = 1)
x_c <- x - mean(x)
mean(x)
mean(x_c)

[1] 0.9955063
[1] -4.328243e-17

For categorical (grouping) predictors, either we or the program will make the intercept interpretable by creating a reference group:
- Reference group is given a 0 value on all predictor variable created from the original group variable, such that the intercept is the expected outcome for that reference group specifically
- Accomplished via “dummy coding” or “reference group coding”
For categorical predictors with more than two groups
- We need to dummy coded the group variable using factor() in R
- For example, I dummy coded group variable with group 1 as the reference

dataTestExperiment$Group <- factor(dataTestExperiment$Group,
                                   levels = 1:4,
                                   labels = c("Ctl", "T1", "T2", "T3"))
mod_e0 <- lm(Test ~ Group, data = dataTestExperiment)
summary(mod_e0)$coefficients |> kable(digits = 3)

	Estimate	Std. Error	t value	Pr(>\|t\|)
(Intercept)	80.20	0.536	149.513	0.000
GroupT1	7.76	0.759	10.229	0.000
GroupT2	2.16	0.759	2.847	0.005
GroupT3	6.88	0.759	9.069	0.000

Variable Group: # dummy variables = # group -1
- Dummy variables with four levels - {Control, Treatment1, Treatment2, Treatment3}:
  - d1 = GroupT1 (0, 1, 0, 0) $\rightarrow$ $\beta_1$ = difference between Treatment1 vs. Control
  - d2 = GroupT2 (0, 0, 1, 0) $\rightarrow$ $\beta_2$ = difference between Treatment2 vs. Control
  - d3 = GroupT3 (0, 0, 0, 1) $\rightarrow$ $\beta_3$ = difference between Treatment3 vs. Control

model.matrix(mod_e0) |> cbind(dataTestExperiment) |> show_table(font_size = 33)

(Intercept)	GroupT1	GroupT2	GroupT3	PersonID	Senior	New	Group	Test
1	0	0	0	1	0	0	Ctl	78
1	0	0	0	2	0	0	Ctl	77
1	0	0	0	3	0	0	Ctl	75
1	0	0	0	4	0	0	Ctl	86
1	0	0	0	5	0	0	Ctl	78
1	0	0	0	6	0	0	Ctl	79
1	0	0	0	7	0	0	Ctl	84
1	0	0	0	8	0	0	Ctl	78
1	0	0	0	9	0	0	Ctl	80
1	0	0	0	10	0	0	Ctl	78
1	0	0	0	11	0	0	Ctl	82
1	0	0	0	12	0	0	Ctl	83
1	0	0	0	13	0	0	Ctl	83
1	0	0	0	14	0	0	Ctl	82
1	0	0	0	15	0	0	Ctl	78
1	0	0	0	16	0	0	Ctl	81
1	0	0	0	17	0	0	Ctl	78
1	0	0	0	18	0	0	Ctl	82
1	0	0	0	19	0	0	Ctl	81
1	0	0	0	20	0	0	Ctl	79
1	0	0	0	21	0	0	Ctl	83
1	0	0	0	22	0	0	Ctl	82
1	0	0	0	23	0	0	Ctl	79
1	0	0	0	24	0	0	Ctl	81
1	0	0	0	25	0	0	Ctl	78
1	1	0	0	26	0	1	T1	87
1	1	0	0	27	0	1	T1	88
1	1	0	0	28	0	1	T1	89
1	1	0	0	29	0	1	T1	90
1	1	0	0	30	0	1	T1	86
1	1	0	0	31	0	1	T1	89
1	1	0	0	32	0	1	T1	85
1	1	0	0	33	0	1	T1	88
1	1	0	0	34	0	1	T1	83
1	1	0	0	35	0	1	T1	88
1	1	0	0	36	0	1	T1	87
1	1	0	0	37	0	1	T1	91
1	1	0	0	38	0	1	T1	86
1	1	0	0	39	0	1	T1	89
1	1	0	0	40	0	1	T1	86
1	1	0	0	41	0	1	T1	89
1	1	0	0	42	0	1	T1	87
1	1	0	0	43	0	1	T1	84
1	1	0	0	44	0	1	T1	90
1	1	0	0	45	0	1	T1	90
1	1	0	0	46	0	1	T1	90
1	1	0	0	47	0	1	T1	89
1	1	0	0	48	0	1	T1	87
1	1	0	0	49	0	1	T1	88
1	1	0	0	50	0	1	T1	93
1	0	1	0	51	1	0	T2	80
1	0	1	0	52	1	0	T2	89
1	0	1	0	53	1	0	T2	86
1	0	1	0	54	1	0	T2	85
1	0	1	0	55	1	0	T2	81
1	0	1	0	56	1	0	T2	81
1	0	1	0	57	1	0	T2	85
1	0	1	0	58	1	0	T2	84
1	0	1	0	59	1	0	T2	84
1	0	1	0	60	1	0	T2	82
1	0	1	0	61	1	0	T2	79
1	0	1	0	62	1	0	T2	82
1	0	1	0	63	1	0	T2	84
1	0	1	0	64	1	0	T2	82
1	0	1	0	65	1	0	T2	80
1	0	1	0	66	1	0	T2	83
1	0	1	0	67	1	0	T2	77
1	0	1	0	68	1	0	T2	85
1	0	1	0	69	1	0	T2	76
1	0	1	0	70	1	0	T2	83
1	0	1	0	71	1	0	T2	82
1	0	1	0	72	1	0	T2	81
1	0	1	0	73	1	0	T2	85
1	0	1	0	74	1	0	T2	79
1	0	1	0	75	1	0	T2	84
1	0	0	1	76	1	1	T3	90
1	0	0	1	77	1	1	T3	85
1	0	0	1	78	1	1	T3	85
1	0	0	1	79	1	1	T3	88
1	0	0	1	80	1	1	T3	88
1	0	0	1	81	1	1	T3	89
1	0	0	1	82	1	1	T3	92
1	0	0	1	83	1	1	T3	90
1	0	0	1	84	1	1	T3	82
1	0	0	1	85	1	1	T3	82
1	0	0	1	86	1	1	T3	89
1	0	0	1	87	1	1	T3	84
1	0	0	1	88	1	1	T3	90
1	0	0	1	89	1	1	T3	91
1	0	0	1	90	1	1	T3	88
1	0	0	1	91	1	1	T3	88
1	0	0	1	92	1	1	T3	81
1	0	0	1	93	1	1	T3	90
1	0	0	1	94	1	1	T3	85
1	0	0	1	95	1	1	T3	85
1	0	0	1	96	1	1	T3	88
1	0	0	1	97	1	1	T3	86
1	0	0	1	98	1	1	T3	87
1	0	0	1	99	1	1	T3	87
1	0	0	1	100	1	1	T3	87

Other examples of things people do to categorical predictors:
- “Contrast/effect coding” $\rightarrow$ Gender: -0.5 = Man, 0.5 = Women
  - Effect: Man vs. Average | Women vs. Average
- Test other contrasts among multiple groups
  - Four-group variable: Control, Treatment1, Treatment2, Treatment3
  - Effect: contrast1 = {-1, .33, .33, .34}
  - Control vs. Any Treatment?

Categorical Predictors: Main Effects and Group Means

The single group model:
$\hat Y_p = \beta_0+\beta_1\text{GroupT1}_p+\beta_2\text{GroupT2}_p + \beta_3\text{GroupT3}_p$
- d1 = GroupT1 (0, 1, 0, 0) $\rightarrow$ $\beta_1$ = mean difference between Treatment1 vs. Control
- d2 = GroupT2 (0, 0, 1, 0) $\rightarrow$ $\beta_2$ = mean difference between Treatment2 vs. Control
- d3 = GroupT3 (0, 0, 0, 1) $\rightarrow$ $\beta_3$ = mean difference between Treatment3 vs. Control
How does the model give us all possible group difference?

Control Mean	Treatment 1 Mean	Treatment 2 Mean	Treatment 3 Mean
$\beta_0$	$\beta_0+\beta_1$	$\beta_0+\beta_2$	$\beta_0+\beta_3$

The model (coefficients with dummy coding) directly provides 3 differences (control vs. each treatment), and indirectly provides another 3 differences (differences between treatments)

Group differences from Dummy Codes

Set $J = 4$ as number of groups:

The total number of group differences is $J * (J-1) / 2 = 4*3/2 = 6$

Control Mean	Treatment 1 Mean	Treatment 2 Mean	Treatment 3 Mean
$\beta_0$	$\beta_0+\beta_1$	$\beta_0+\beta_2$	$\beta_0+\beta_3$

All group differences

	Alt Group	Ref Group	Difference
Control vs. T1	$(\beta_0+\beta_1)$	- $\beta_0$	= $\beta_1$
Control vs. T2	$(\beta_0+\beta_2)$	- $\beta_0$	= $\beta_2$
Control vs. T3	$(\beta_0+\beta_3)$	- $\beta_0$	= $\beta_3$
T1 vs. T2	$(\beta_0+\beta_2)$	- $(\beta_0+\beta_1)$	= $\beta_2-\beta_1$
T1 vs. T3	$(\beta_0+\beta_3)$	- $(\beta_0+\beta_1)$	= $\beta_3-\beta_1$
T2 vs. T3	$(\beta_0+\beta_3)$	- $(\beta_0+\beta_2)$	= $\beta_3 - \beta_2$

R Code: Estimating All Group Differences in R

library(multcomp) # install.packages("multcomp")
mod_e0 <- lm(Test ~ Group, data = dataTestExperiment)
summary(mod_e0)

contrast_model_matrix = matrix(c(
  0,  1, 0, 0,  # Control vs. T1
  0,  0, 1, 0,  # Control vs. T2
  0,  0, 0, 1,  # Control vs. T3
  0, -1, 1, 0,  # T1 vs. T2
  0, -1, 0, 1,  # T1 vs. T3
  0,  0,-1, 1   # T2 vs. T3
), nrow = 6, byrow = T)
rownames(contrast_model_matrix) <- c( "Control vs. T1", "Control vs. T2", "Control vs. T3", "T1 vs. T2", "T1 vs. T3", "T2 vs. T3" )
contrast_value <- glht(mod_e0, linfct = contrast_model_matrix)
summary(contrast_value)


     Simultaneous Tests for General Linear Hypotheses

Fit: lm(formula = Test ~ Group, data = dataTestExperiment)

Linear Hypotheses:
                    Estimate Std. Error t value Pr(>|t|)
Control vs. T1 == 0   7.7600     0.7586  10.229   <0.001 ***
Control vs. T2 == 0   2.1600     0.7586   2.847    0.027 *
Control vs. T3 == 0   6.8800     0.7586   9.069   <0.001 ***
T1 vs. T2 == 0       -5.6000     0.7586  -7.382   <0.001 ***
T1 vs. T3 == 0       -0.8800     0.7586  -1.160    0.653
T2 vs. T3 == 0        4.7200     0.7586   6.222   <0.001 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Adjusted p values reported -- single-step method)

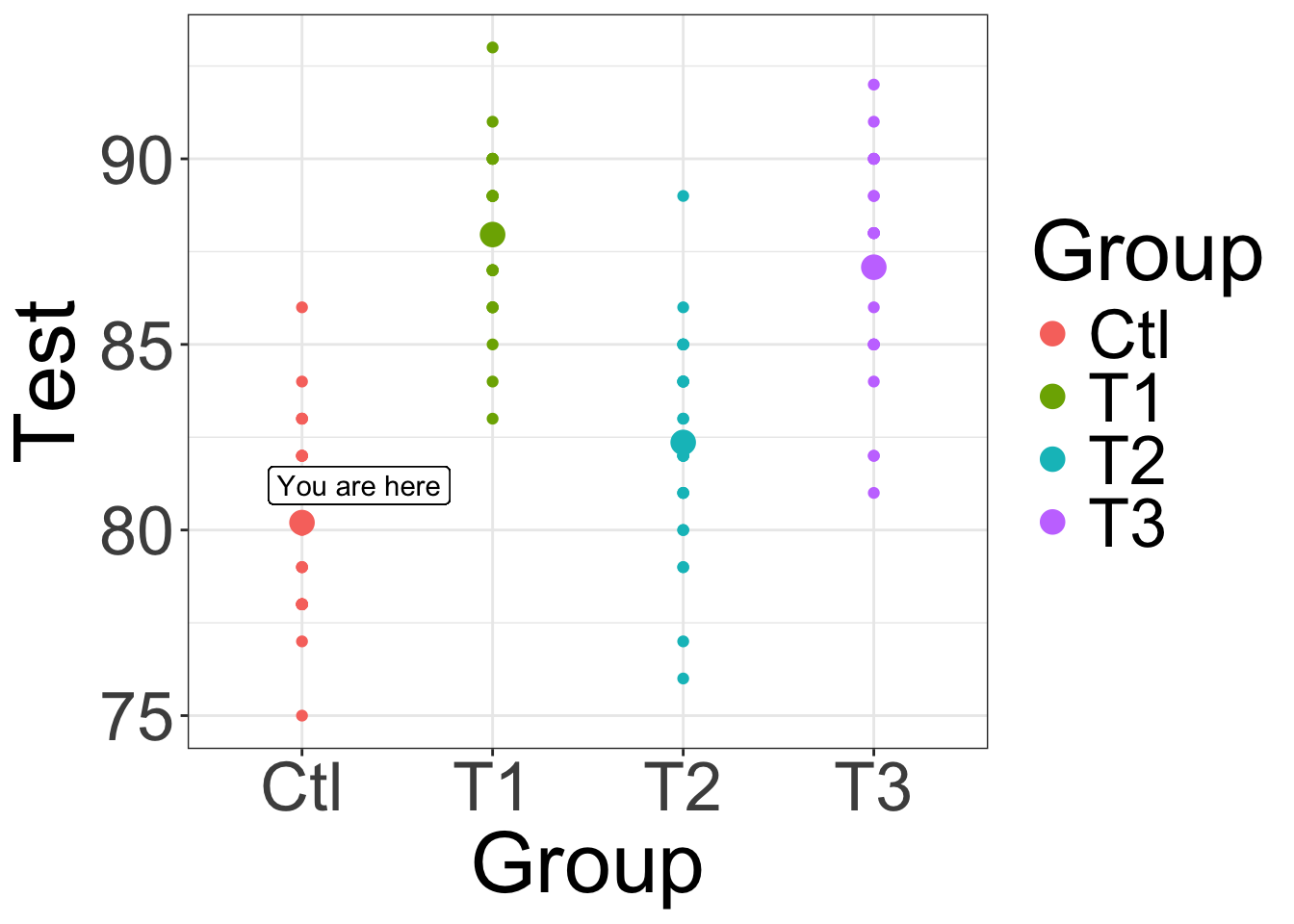

What the intercept should mean to you

The model for the means will describe what happens to the predicted outcome Y “as X increases” or “as Z increases” and so forth
But you won’t know what Y is actually supposed to be unless you know where the predictor variables are starting from!
Therefore, the intercept is the “YOU ARE HERE” sign in the map of your data… so it should be somewhere in the map*!

Main Effects Within Interactions

Interaction Effects

Interaction = Moderation: the effect of a predictor depends on the value of the interacting predictor
- Either predictor can be “the moderator” (interpretive distinction only)
Interaction can always be evaluated for any combination of categorical and continuous predictors, although
1. In “ANOVA”: By default, all possible interactions are estimated
  - Software does this for you; oddly enough, nonsignificant interactions usually still are kept in the model (even if only significant interactions are interpreted)
2. In “ANCOVA”: Continuous predictors (“covariates”) do not get to be part of interactions ➡️ make the “homogeneity of regression” assumption
  - There is no reason to assume this – it is a testable hypothesis!
3. In “Regression”: No default – effects of predictors are as you specify them
  - Requires most thought, but gets annoying because in regression programs you usually have to manually create the interaction as an observed variable:
  - e.g., XZ_interaction = centered_X * centered_Z

Simple / Conditional Main Effects in GLM with Interactions

Note

Main effects of predictors within interactions should remain in the model regardless of whether or not they are significant

😶: $Y_p = \beta_0 + \beta_1 X_1 X_2$

😄: $Y_p = \beta_0 + \beta_1X_1+\beta_2X_2+\beta_3 X_1 X_2$

Reason: the role of two-way interaction is to adjust its main effects
However, the original idea of a “main effect” no longer applied … each main effect is conditional on the interacting predictor as 0 ( $X_1X_2=0$ )
Conditional Main Effect = What it is + What modified it

Simple Main Effect = The modified value of main effect
“Conditional” main effect is a general form of “Simple” main effect:
- $\beta_1$ is the “simple” main effect of X1 when X2 = 0
  - $\beta_1 + \beta_3 X_2$ is the “conditional” main effect of X1 depending on X2 values
- $\beta_2$ is the “simple” main effect of X2 when X1 = 0
  - $\beta_2 + \beta_3 X_1$ is the “conditional” main effect of X2 depending on X1 values

Model-Implied Simple Main Effects

To quickly compute simple main effects:

Tip

The trick is keeping track of what 0 means for every interacting predictor, which depends on the way each predictor is being represented, as determined by you, or by the software without you!

$\text{GPA}_p = 30 + 1\times \text{Motiv}_p +2 \times\text{Exam}_p+ 0.5 \times \text{Motiv}\times \text{Exam}_p$

GPA scores of anyone can be predicted by academic motivation, final exam scores, and their interaction by this model
Conditional Main Effect of Motiv : $(1 + 0.5\times \text{Exam})$
- Simple main effect = 1 if Exam = 0; = 1.5 if Exam = 1; = 3 if Exam = 4
Conditional Main Effect of Exam : $(2 + 0.5\times \text{Motiv})$
- Simple main effect = 2 if Motiv = 0; = 3 if Motiv = 2; = 4 if Motiv = 4

Interpretation

$\begin{aligned} \text{GPA}_p = \beta_0 + \beta_1\times \text{Motiv}_p + \beta_2 \times\text{Exam}_p+ \beta_3 \times \text{Motiv}_p \times \text{Exam}_p \\= 30 + 1\times \text{Motiv}_p +2 \times\text{Exam}_p+ 0.5 \times \text{Motiv}_p \times \text{Exam}_p \end{aligned}$

$\beta_0$ : Expected GPA when motivation is 0 and exam score is 0
$\beta_1$ : Increase in GPA per unit motivation when exam score is 0
$\beta_2$ : Increase in GPA per unit exam score when motivation is 0
$\beta_3$ : Two ways of interpretation
- Motivation is moderator: Increase in effect of exam scores per unit motivation
  - One unit of motivation leads to the effect of exam score $2 \rightarrow 2.5$
- Exam Score is moderator: Increase in effect of motivation per unit exam score
  - One unit of exam score leads to the effect of motivation $1 \rightarrow 1.5$

Note

If interaction effect is significant, we typically report that motivation significantly moderates the effect of exam score on GPA

Why centering matters

When we centered Exam Score with 3 as centering point, then intercept and the main effect of motivation will change:

$\begin{align} \text{GPA}_p = \color{tomato}{30} + \color{tomato}{1}\times \text{Motiv}_p +2 \times\text{Exam}_p+ 0.5 \times \text{Motiv}\times \text{Exam}_p \\= \color{tomato}{\beta_0^\prime} + \color{tomato}{\beta_1\prime} \times \text{Motiv}_p + \beta_2 \times (\text{Exam}_p-3)+ \beta_3 \times \text{Motiv}\times (\text{Exam}_p-3) \\= \color{red}{36} + \color{red}{2.5}\times \text{Motiv}_p +2 \times (\text{Exam}_p-3) + 0.5 \times \text{Motiv}\times (\text{Exam}_p-3) \end{align}$

Trick of new coefficients: Predicted value stay the same
- Expected GPA score is 30 + 1*0 + 2*3 + 0.5*0 = 36 when Motiv = 0 and Exam = 3
- Expected conditional main effect of Motiv is 1 + 0.5*3 = 2.5 when Exam = 3
Reason: $\beta_0$ and $\beta_1$ are conditional on exam score while $\beta_2$ and $\beta_3$ are unconditional on exam score

Example: Main Effect for continuous centered predictors

Conditional main effect for Motiv depending on value of Exam:
- $(1 + 0.5\times\text{Exam})$ or $[2.5 + 0.5 \times(\text{Exam}-3)]$
- “Simple” main effect is 1 when Exam = 0; 2.5 when Exam = 3
- Assume centering point of Exam is T, we can get the general form of simple main effect of Motivation as:
- $f(\beta_1,\beta_3,\text{Exam})= (\beta_1 + \beta_3*T) + \beta_3*(\text{Exam} - T) = \beta_1^{new}+\beta_3*\text{Exam}_C$
- where new conditional main effect $\beta_1^{new} = \beta_1+\beta_3*T$
Similarly, we can get the general form of conditional main effect of Exam as
- $f(\beta_2,\beta_3,\text{Motiv})= (\beta_2 + \beta_3*T) + \beta_3*(\text{Motiv} - T)$
- where new conditional main effect $\beta_2^{new} = \beta_2 + \beta_3 * T$

Quiz

Testing the Significance of Model-Implied Fixed Effects

We now know how to calculate any conditional main effect:
- Effect of interest (“conditional” main effect) = what it is + what modifies it
- Output Effect (“simple” main effect) = what it is + what modifies it is 0
But if we want to test whether that new effect is $\neq 0$ , we also need its standard error (SE needed to get Wald test T-value ➡️p-value)
Even if the conditional main effect is not directly given by the model, its estimate and SE are still implied by the model

3 options to get the new conditional main effect estimates and SE
- Method 1: Ask the software to give it to you using your original model
  - e.g., glht function in R package multicomp, ESTIMATE in SAS, TEST in SPSS, NEW in Mplus
- Model 2: Re-center your predictors to the interacting value of interest (e.g., make Exam = 3 the new 0 for $\text{Exam}_C$ ) and re-estimate your model; repeat as needed for each value of interest
- Method 3: Hand calculations (what the program is doing for you in option #1)

Method 3 for example: Effect of Motiv = $\beta_1 + \beta_3 * \text{Exam}$
- We have following formula to calculate the sampling error variance of “conditional” main effect as
- $\mathbf{SE_{\beta_1^{New}}^2 = Var(\beta_1) + Var(\beta_3) * Exam + 2Cov(\beta_1, \beta_3)*Exam}$
  - Values come from “asymptotic (sampling) covariance matrix”
  - Variance of a sum of terms always includes covariance among them
  - Here, this is because what each main effect estimate could be is related to what the other main effect estimates could be
  - Note that if a main effect is unconditional, its $SE^2 = Var(\beta)$ only

Unit 2: GLM Example 1

GLM via Dummy-Coding in “Regression”

# Model 1: 2 X 2 predictors with 0/1 coding
model1 <- lm(Test ~ Senior + New + Senior * New, data = dataTestExperiment)
# Alternative
formular_mod1 <- as.formula("Test ~ Senior + New + Senior * New")
model1 <- lm(formular_mod1, data = dataTestExperiment)
summary(model1)


Call:
lm(formula = formular_mod1, data = dataTestExperiment)

Residuals:
   Min     1Q Median     3Q    Max
 -6.36  -2.08   0.04   1.83   6.64

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  80.2000     0.5364 149.513  < 2e-16 ***
Senior        2.1600     0.7586   2.847  0.00539 **
New           7.7600     0.7586  10.229  < 2e-16 ***
Senior:New   -3.0400     1.0728  -2.834  0.00561 **
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 2.682 on 96 degrees of freedom
Multiple R-squared:  0.6013,    Adjusted R-squared:  0.5888
F-statistic: 48.26 on 3 and 96 DF,  p-value: < 2.2e-16

anova(model1)

Analysis of Variance Table

Response: Test
           Df Sum Sq Mean Sq  F value    Pr(>F)
Senior      1  10.24   10.24   1.4235  0.235762
New         1 973.44  973.44 135.3253 < 2.2e-16 ***
Senior:New  1  57.76   57.76   8.0297  0.005609 **
Residuals  96 690.56    7.19
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Note

This ANOVA table is displaying marginal tests (F-test) for the main effects. Marginal tests are for the main effect only and are not conditional on any interacting variables.

Getting estimates and standard errors of group means

We can get group means of test scores with Senior/Freshman by New/Old combination

glht() requests predicted outcomes from model for the means:

$\mathbf{\hat{Test} =\beta_0+\beta_1Senior+\beta_2New+\beta_3SeniorNew}$

Freshmen-Old: $\mathbf{\hat{Test_1}=\beta_0*1+\beta_1*0+\beta_2*0 +\beta_3*0}$
Freshmen-New: $\mathbf{\hat{Test_2}=\beta_0*1+\beta_1*0+\beta_2*1 +\beta_3*0}$
Senior-Old: $\mathbf{\hat{Test_3}=\beta_0*1+\beta_1*1+\beta_2*0 +\beta_3*0}$
Senior-New: $\mathbf{\hat{Test_4}=\beta_0*1+\beta_1*1+\beta_2*1 +\beta_3*1}$

contrast_model1_matrix = matrix(c(
  1, 0, 0, 0,  # Freshman-Old
  1, 0, 1, 0,  # Freshman-New
  1, 1, 0, 0,  # Senior-Old
  1, 1, 1, 1   # Senior-New
), nrow = 4, byrow = T)
rownames(contrast_model1_matrix) <- c( "Freshman-Old", "Freshman-New", "Senior-Old", "Senior-New")
means_model1 <- glht(model1, linfct = contrast_model1_matrix)
summary(means_model1)


     Simultaneous Tests for General Linear Hypotheses

Fit: lm(formula = formular_mod1, data = dataTestExperiment)

Linear Hypotheses:
                  Estimate Std. Error t value Pr(>|t|)
Freshman-Old == 0  80.2000     0.5364   149.5   <2e-16 ***
Freshman-New == 0  87.9600     0.5364   164.0   <2e-16 ***
Senior-Old == 0    82.3600     0.5364   153.5   <2e-16 ***
Senior-New == 0    87.0800     0.5364   162.3   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Adjusted p values reported -- single-step method)

Standard Errors of Group Means

Freshman-Old group mean’s standard error:

$\mathbf{SE^2(\hat{Test_1}) = \mathbf{SE^2(\beta_0)} = Var(\beta_0)}$

Freshman-New group mean’s standard error:

$\mathbf{SE^2(\hat{Test_2}) = \mathbf{SE^2(\beta_0+\beta_2)} = Var(\beta_0) + Var(\beta_2) + 2Cov(\beta_0,\beta_2)}$

Senior-Old group mean’s standard error:

$\mathbf{SE^2(\hat{Test}_3)} = \mathbf{SE^2(\beta_0+\beta_1)} = ???$
Senior-New group mean’s standard error:

$\mathbf{SE^2(\hat{Test}_4)} = \mathbf{SE^2(\beta_0+\beta_1+\beta_2+\beta_3)} = ??? = \sum(\Sigma_\beta)$

vcov(model1)# Variance-covariance of betas

            (Intercept)     Senior        New Senior:New
(Intercept)   0.2877333 -0.2877333 -0.2877333  0.2877333
Senior       -0.2877333  0.5754667  0.2877333 -0.5754667
New          -0.2877333  0.2877333  0.5754667 -0.5754667
Senior:New    0.2877333 -0.5754667 -0.5754667  1.1509333

# Standard error of freshman-old group: SE(beta_0)
Var_Test_1 <- Var_beta_0 <- vcov(model1)[1,1]
(SE_Test_1 <- sqrt(Var_Test_1))

[1] 0.5364078

# Standard error of freshman-new group: SE(beta_0+beta_1)
Var_beta_0 <- vcov(model1)[1,1]
Var_beta_2 <- vcov(model1)[3,3]
Cov_beta_0_2 <- vcov(model1)[1,3]
Var_Test_2 <- Var_beta_0 + Var_beta_2 + 2*Cov_beta_0_2
(SE_Test_2 <- sqrt(Var_Test_2))

[1] 0.5364078

Your Homework 1 - Question 1

Copy and paste your R syntax and output that calculates the Senior-Old’s standard errors of means (use the data and model we use in class). For example, our class syntax for Freshman-New is like:

# R syntax

library(ESRM64503)
library(tidyverse)
model1 <- lm(Test ~ Senior + New + Senior * New, data = dataTestExperiment)
data(“dataTestExperiment”)
Var_beta_0 <- vcov(model1)[1,1]
Var_beta_2 <- vcov(model1)[3,3]
Cov_beta_0_2 <- vcov(model1)[1,3]
Var_Test_2 <- Var_beta_0 + Var_beta_2 + 2*Cov_beta_0_2
(SE_Test_2 <- sqrt(Var_Test_2))

# R Output
[1] 0.5364078

Standard errors of Main Effects

We can use glht() to automatically calculate conditional main effects and their standard errors. Or, we can manually calculate them using vcov(model) function, which represents the variance-covariance matrix of main effects.

Method 1: glht method

Using glht function to simultaneous testing for group means

effect_model1_matrix = matrix(c(
  0, 1, 0, 0,  # Senior vs. Freshmen | Old
  0, 1, 0, 1,  # Senior vs. Freshmen | New
  0, 0, 1, 0,  # New vs. Old | Freshmen
  0, 0, 1, 1   # New vs. Old | Senior
), nrow = 4, byrow = T)
rownames(effect_model1_matrix) <- c( "beta_Senior_New0", # Conditional Main Effect of Senior given old instruction (New = 0)
                                     "beta_Senior_New1", # Conditional Main Effect of Senior given new instruction (New = 1)
                                     "beta_New_Senior0", # Conditional Main Effect of New Instruction given Senior = 0
                                     "beta_New_Senior1") # Conditional Main Effect of New Instruction given Senior = 1
effect_model1 <- glht(model1, linfct = effect_model1_matrix)
summary(effect_model1)


     Simultaneous Tests for General Linear Hypotheses

Fit: lm(formula = formular_mod1, data = dataTestExperiment)

Linear Hypotheses:
                      Estimate Std. Error t value Pr(>|t|)
beta_Senior_New0 == 0   2.1600     0.7586   2.847   0.0197 *
beta_Senior_New1 == 0  -0.8800     0.7586  -1.160   0.5940
beta_New_Senior0 == 0   7.7600     0.7586  10.229   <0.001 ***
beta_New_Senior1 == 0   4.7200     0.7586   6.222   <0.001 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Adjusted p values reported -- single-step method)

Method 2: vcov method

Example: Conditional main effect of Senior $\mathbf{\beta_1^{Senior}}$ (Senior vs. Freshmen) when using the new method (New = 1)

$\mathbf{\beta_1^{Senior} = \beta_1+\beta_3*New}$

$\begin{align} \mathbf{SE^2(\beta_1^{Senior})} &= \mathbf{SE^2(\beta_1+\beta_3*New)} \\ &= \mathbf{Var(\beta_1) + Var(\beta_3) * New^2 + 2Cov(\beta_1, \beta_3)*New} \\ &= \mathbf{Var(\beta_1) + Var(\beta_3) + 2Cov(\beta_1, \beta_3)} \end{align}$

## conditional main effect of senior when new
fixed_effects <- summary(model1)$coefficients
fixed_effects

            Estimate Std. Error    t value      Pr(>|t|)
(Intercept)    80.20  0.5364078 149.513112 1.588771e-115
Senior          2.16  0.7585952   2.847368  5.391733e-03
New             7.76  0.7585952  10.229435  4.785144e-17
Senior:New     -3.04  1.0728156  -2.833665  5.609415e-03

beta_1 <- fixed_effects[2, 1]
beta_3 <- fixed_effects[4, 1]
(beta_1_new <- beta_1+beta_3) # conditional main effect of Senior when New = 1

[1] -0.88

vcov(model1) # Variance-covariance of betas

            (Intercept)     Senior        New Senior:New
(Intercept)   0.2877333 -0.2877333 -0.2877333  0.2877333
Senior       -0.2877333  0.5754667  0.2877333 -0.5754667
New          -0.2877333  0.2877333  0.5754667 -0.5754667
Senior:New    0.2877333 -0.5754667 -0.5754667  1.1509333

Var_beta_1 = vcov(model1)[2,2] # squared SE of beta1
Var_beta_3 = vcov(model1)[4,4] # squared SE of beta3
Cov_beta_1_3 = vcov(model1)[4,2] # residual covariance of beta1 and beta3
Var_beta_1_new <- Var_beta_1 + Var_beta_3 * 1 + 2 * Cov_beta_1_3 * 1
(SE_beta_1_new <- sqrt(Var_beta_1_new))

[1] 0.7585952

Unit 3: R practice and Q&A

Mini Quiz

In dummy coding with a 4-group categorical variable (Control, T1, T2, T3), how many dummy variables are needed and what does the intercept represent?

4 dummy variables; intercept = grand mean
3 dummy variables; intercept = reference group mean
3 dummy variables; intercept = grand mean
4 dummy variables; intercept = reference group mean

In the model $Y_p = \beta_0 + \beta_1X_1 + \beta_2X_2 + \beta_3X_1X_2$ , what does $\beta_1$ represent?

Main effect of $X_1$ across all values of $X_2$
Simple main effect of $X_1$ when $X_2 = 0$
Conditional main effect of $X_1$ depending on $X_2$
Interaction effect between $X_1$ and $X_2$

When centering a continuous predictor around its mean, which of the following does NOT change?

The intercept value
The $R^2$ value
The main effect coefficient
The predicted values

In an interaction model, why should main effects be kept in the model even if they are not significant?

To increase the model’s $R^2$
Because the interaction adjusts the main effects
To maintain the degrees of freedom
To prevent multicollinearity

If you want to test whether a conditional main effect is significantly different from zero, which method would NOT work?

Use glht() function with contrast matrix
Re-center predictors and re-estimate the model
Hand calculations using variance-covariance matrix
Simply look at the original main effect p-value

Answers: 1-b, 2-b, 3-b, 4-b, 5-d
